Application:
This wireless RF transmitter is a long range remote control. It has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption.
It and the wireless RF receiver form a receiver transmitter system. This system may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, aerial vehicle, etc. It can remote control equipment on land, water and air, such as remote control of lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, and business signs. The applications are endless.
Parameters:
Model No.: 0021027 (CB-6)
Channel/Button: 6
Button Symbol: 1, 2, 3, 4, 5, 6,

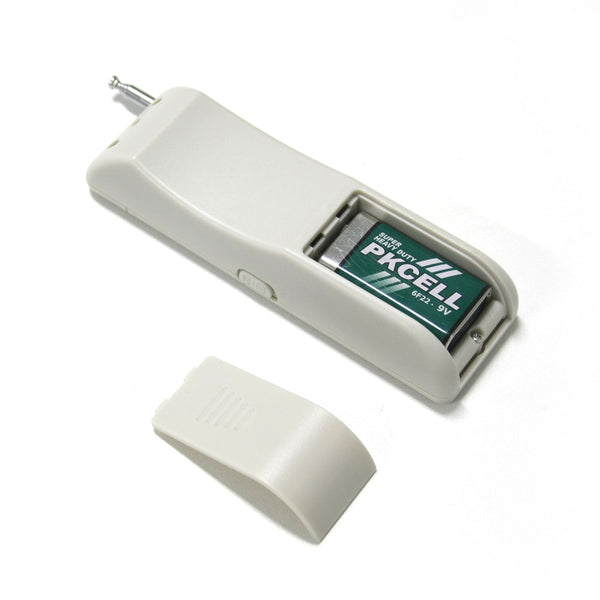

Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for 12 months)
Operating Current: 30mA
Operating Frequency: 433.92MHz
Encoding Chip: PT2262 / PT2264 / SC2262
Transmitting Distance: 1000m / 3000ft (theoretically)

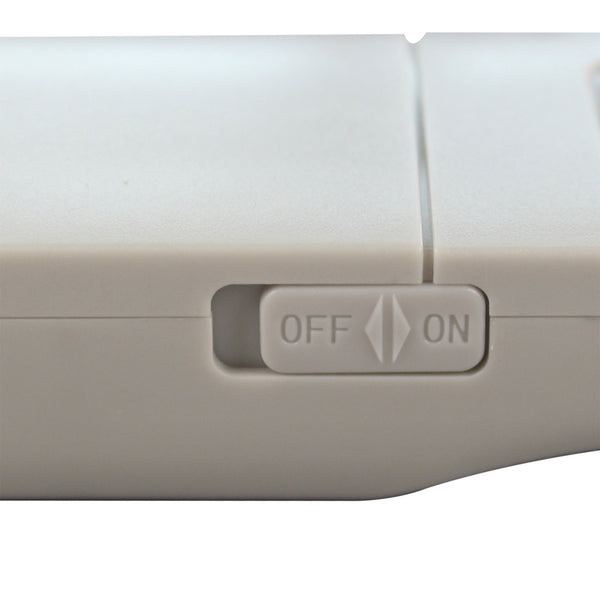

It has an on / off button on the side.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
This wireless RF transmitter is a long range remote control. It has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption.
It and the wireless RF receiver form a receiver transmitter system. This system may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, aerial vehicle, etc. It can remote control equipment on land, water and air, such as remote control of lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, and business signs. The applications are endless.
Parameters:
Model No.: 0021027 (CB-6)
Channel/Button: 6
Button Symbol: 1, 2, 3, 4, 5, 6,
Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for 12 months)
Operating Current: 30mA
Operating Frequency: 433.92MHz
Encoding Chip: PT2262 / PT2264 / SC2262
Transmitting Distance: 1000m / 3000ft (theoretically)
It has an on / off button on the side.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
