Package Include:
12 x Receiver: S1X-DC
1 x Transmitter: CV-12
1 x User manual
Application:
This is 12 way DC 6V 9V 12V 24V input and output wireless remote control switch kit.
One 12 buttons RF transmitter controls twelve 1 channel waterproof radio receivers.
It can long range remote control DC equipments, such as lamp, light, solar light, LED lighting, fan, motor, pump, solenoid valve, door lock, gates, etc.
Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
DC Power Output: It can control DC equipment with voltage DC 6V, 9V, 12V or 24V.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model No.: S1X-DC
Power Supply (Operating Voltage): DC6V (S1X-DC06), DC12V±1V (S1X-DC12), DC9V±1V (S1X-DC09), DC24V±1V (S1X-DC24), the operating voltage must be specified when ordering.
Output: DC6V (S1X-DC06), DC12V (S1X-DC12), DC9V (S1X-DC09), DC24V (S1X-DC24)
Channel: 1 CH
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 10A
2 Control modes: Self-locking, Momentary
Working Frequency: 433MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)
Transmitter Parameters:
Model No.: 0021022 (CV-12)
Channel/Button: 12
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

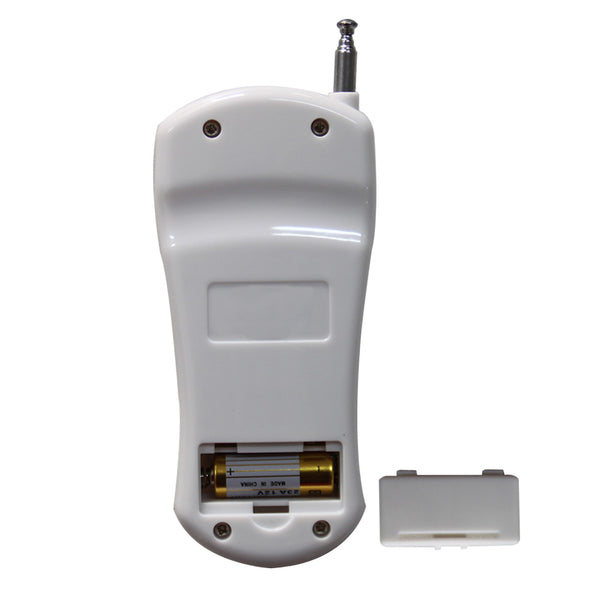

Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 15mA
Operating Frequency: 433MHz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm
Matching Transmitters:
The receiver can work with different transmitters, such as model CV-12 (500 Meter / 1500 feet range) or CB-12 (1000 Meter / 3000 feet range).
Working Range:
With a transmitter (such as CV-12) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-12 transmitter.
Usage:
The receiver can be used to control DC 6V / 9V / 12V / 24V equipments. If the power supply of those equipments is DC 12V, you should choose the receiver with same DC 12V version; and if the power supply of those equipments is DC 24V, you should choose the receiver with same DC 24V version.
Wiring:
1) Connect the positive pole of DC device to output terminal "L/+" of receiver;
2) Connect the negative pole of DC device to output terminal "N/-" of receiver;
3) Connect the positive pole of DC power supply to input terminal "L/+" of receiver;
4) Connect the negative pole of DC power supply to input terminal "N/-" of receiver.
Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CV-12:
Press and hold the button 1 on the transmitter: The terminal "OUT1" of the receiver 1 outputs DC power, and the connected lamp 1 is turned on.
Release the button 1: The terminal "OUT1" of the receiver 1 stops outputting, and the connected lamp 1 is turned off.
Press and hold the button 2 on the transmitter: The terminal "OUT1" of the receiver 2 outputs DC power, and the connected lamp 2 is turned on.
Release the button 2: The terminal "OUT1" of the receiver 2 stops outputting, and the connected lamp 2 is turned off.
...
Press and hold the button 12 on the transmitter: The terminal "OUT1" of the receiver 12 outputs DC power, and the connected lamp 12 is turned on.
Release the button 12: The terminal "OUT1" of the receiver 12 stops outputting, and the connected lamp 12 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CV-12:
Press the button 1 on the transmitter: The terminal "OUT1" of the receiver 1 outputs DC power, and the connected lamp 1 is turned on.
Press the button 1 again: The terminal "OUT1" of the receiver 1 stops outputting, and the connected lamp 1 is turned off.
Press the button 2 on the transmitter: The terminal "OUT1" of the receiver 2 outputs DC power, and the connected lamp 2 is turned on.
Press the button 2 again: The terminal "OUT1" of the receiver 2 stops outputting, and the connected lamp 2 is turned off.
...
Press the button 12 on the transmitter: The terminal "OUT1" of the receiver 12 outputs DC power, and the connected lamp 12 is turned on.
Press the button 12 again: The terminal "OUT1" of the receiver 12 stops outputting, and the connected lamp 12 is turned off.
