Package Include:
1 x Receiver: S1FC-DC
1 x Transmitter: CP-3
1 x Electric Linear Actuator

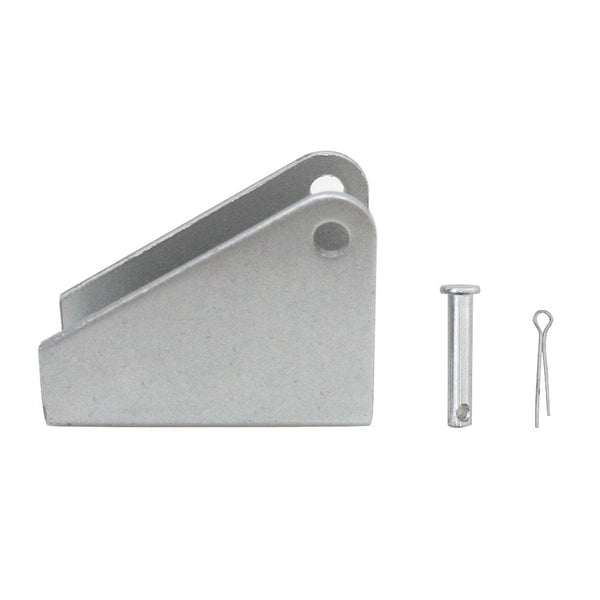

2 x Mounting Brackets A
1 x User manual
Application:
The 1 channel DC power 12V 24V wireless remote control switch kit with RF transmitter and radio receivers. For long range wireless remote control the extension and retraction of electric linear actuator.
The DC 12V 24V 200kg 2000N 450 lbs Electric Linear Actuator can open, close, push, pull, lift and descend other devices. Such as doors, windows, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, etc.
It can replace hydraulic and pneumatic products to save power consumption.

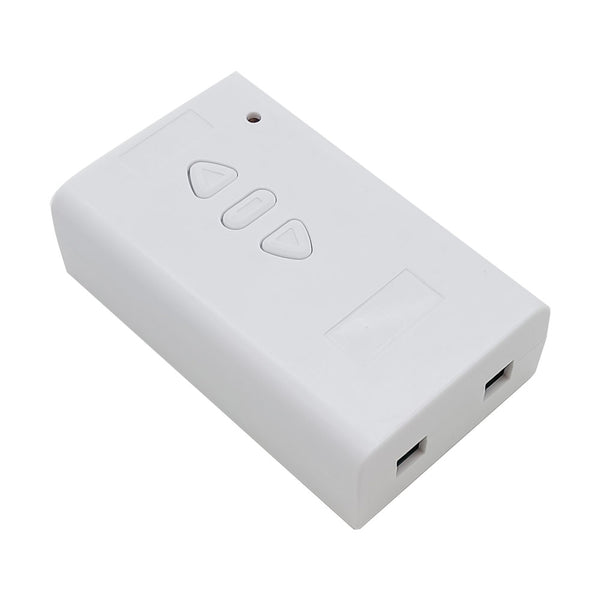

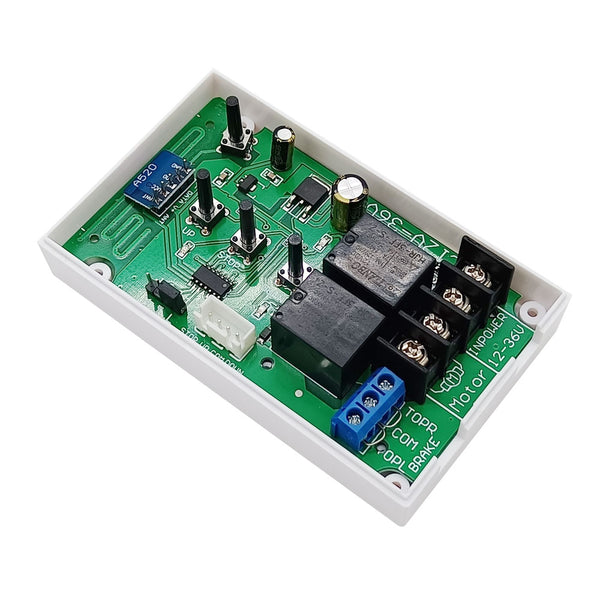

Receiver Parameters:
Model: S1FC-DC
Operating Voltage: 12~36 VDC
Output Voltage: 12~36 VDC same as input voltage
Working Frequency: 433.92 MHz
Channel: 1 CH, can work with 1 DC motor or 1 linear actuator
Quiescent Current: ≤6mA
Rated Current: 10A, so linear actuator or motor's maximum starting current cannot exceed 10A.
Wire range for the terminals: 22-14 AWG
2 Selectable Modes: Interlocking, Momentary
Operating Temperature: -20°C ~ +70°C
Case Size: 100 x 60 x 30 mm (4.0 x 2.4 x 1.2 inches)

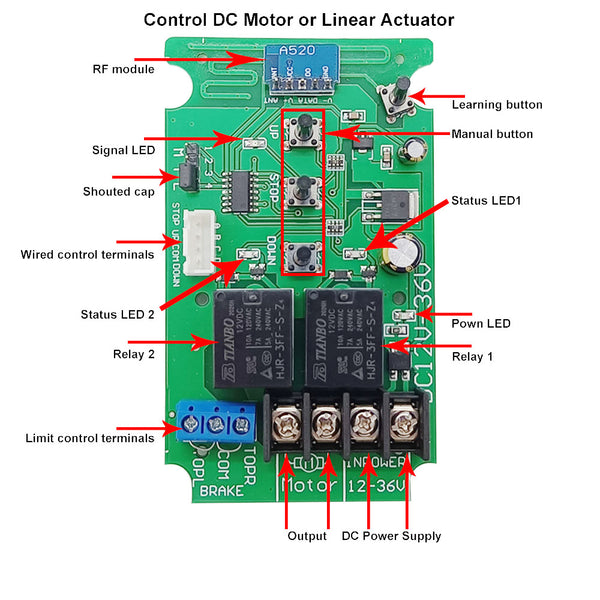

With three manual buttons: You can control the linear actuator by manual buttons.
With limit control terminals: You can connect sensors, limit switches or external devices to stop the linear actuator.
With wired control terminals: You can connect manual switches to control the linear actuator.

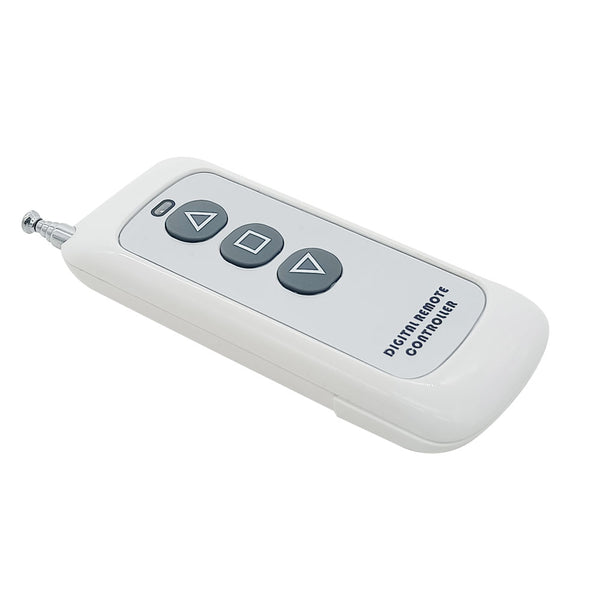

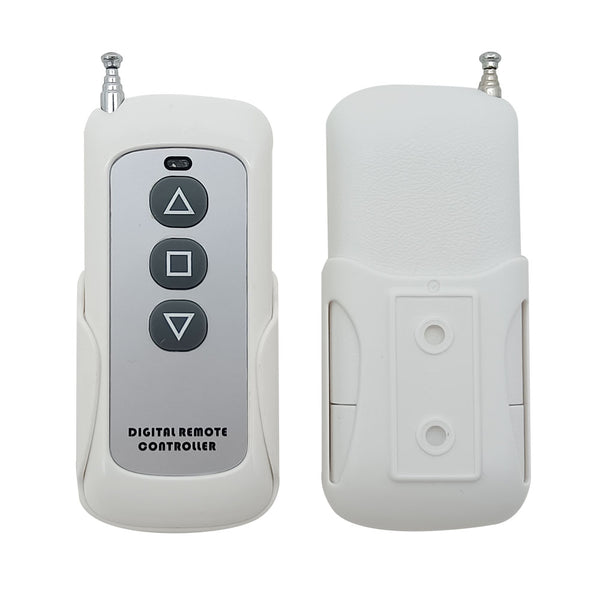

Transmitter Parameters:
Model No.: CP-3
Channel/Button: 3
Button Symbol:▲, ■, ▼
Operating Voltage: 12V (1 x 23A -12V battery)
Standby current: 4uA
Operating Current: 14mA
Operating Frequency: 433Mhz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 92mm x 40mm x 15mm

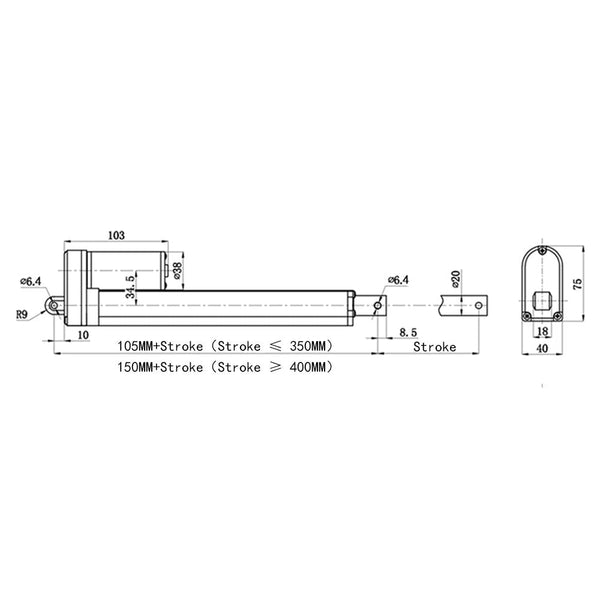

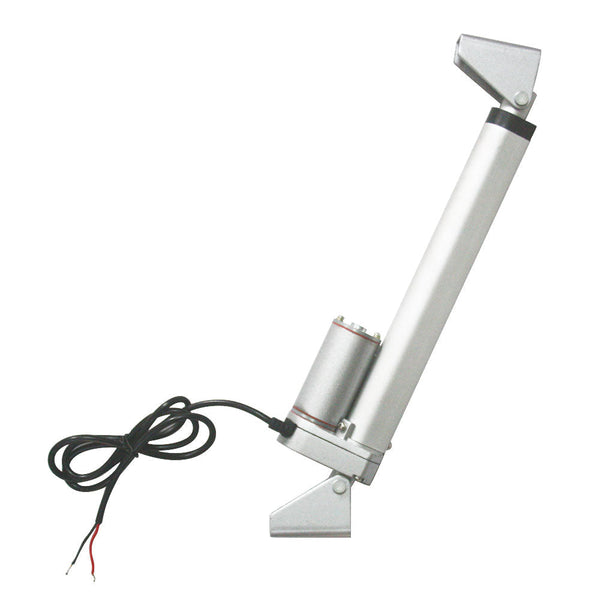

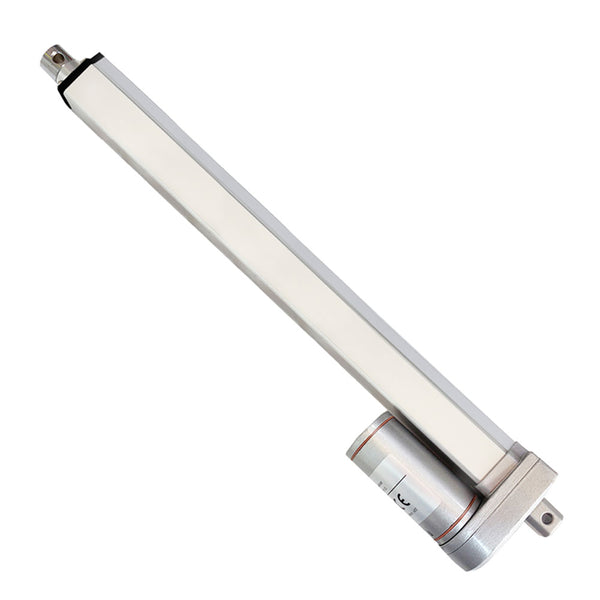

Linear Actuator Parameters:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power supply available, we recommend you choose the linear actuator with 24V working voltage.
Stroke range: 12 inches (300 mm)
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s, 100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use a 12V/6A or 24V/3A power supply to power a linear actuator or use a 12V/10A or 24V/5A power supply to power two linear actuators, or use a 12V/20A or 24V/10A power supply to power four linear actuators.
Shaft diameter: 20mm
Mounting holes diameter: 6mm
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
Duty cycle: 20%, max 5mins continuous use
Power cable: Ordinary Two-core Wire
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65
|
Thrust and speed sheet |
|
| Speed | Thrust |
| 5mm/s | 2000N / 200 kg / 450 lbs |
| 10mm/s | 1000N / 100 kg / 200 lbs |
| 15mm/s | 800N / 80 kg / 180 lbs |
| 20mm/s | 700N / 70 kg / 160 lbs |
| 30mm/s | 500N / 50 kg / 110 lbs |
| 50mm/s | 300N / 30 kg / 60 lbs |
| 100mm/s | 150N / 15 kg / 30 lbs |
| 160mm/s | 100N / 10 kg / 20 lbs |
Setting different control modes:
1) Setting Interlocking mode: Short pins number 3 and 4 with a shouted cap.
The operation by the transmitter, such as CP-3:
Press the button ▲ on the transmitter: Linear actuator extends outward.
Press the button ▼ on the transmitter: Linear actuator inward retracts.
Press the button ■ on the transmitter: Linear actuator stops.
The operation by the receiver:
Press the button ▲ on the receiver: Linear actuator extends outward.
Press the button ▼ on the receiver: Linear actuator inward retracts.
Press the button ■ on the receiver: Linear actuator stops.
2) Setting Momentary mode: Short pins number 1 and 2 with a shouted cap.
The operation by the transmitter, such as CP-3:
Press and hold the button ▲ on the transmitter: Linear actuator extends outward.
Release the button ▲: Linear actuator stops.
Press and hold the button ▼ on the transmitter: Linear actuator inward retracts.
Release the button ▼: Linear actuator stops.
The operation by the receiver:
Press and hold the button ▲ on the receiver: Linear actuator extends outward.
Release the button ▲: Linear actuator stops.
Press and hold the button ▼ on the receiver: Linear actuator inward retracts.
Release the button ▼: Linear actuator stops.

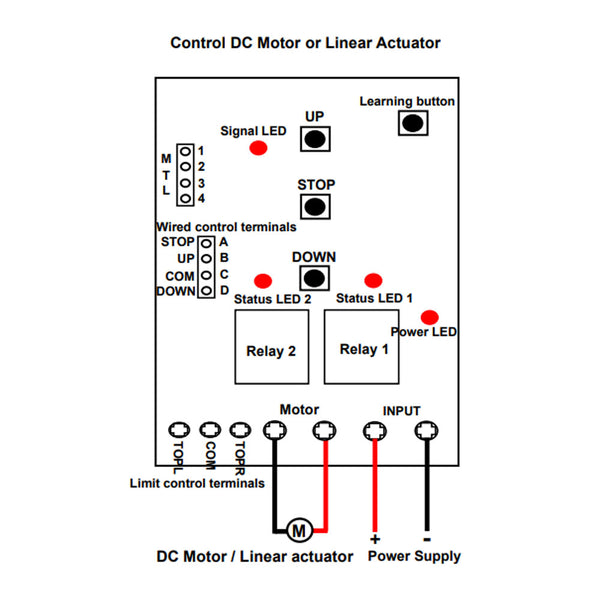

Limit control terminals:
The receiver has limit control terminals, and you can connect external devices (with normally closed contact), such as sensors, limit switches to limit terminals, then use them to stop the motor or the linear actuator.
When linear actuator extends outward, if disconnect two terminals <TOPR> and <COM>, the linear actuator will stop automatically.
When linear actuator inward retracts, if disconnect two terminals <TOPL> and <COM>, the linear actuator will stop automatically.
Wired control terminals:
The receiver has wired control terminals, and you can connect external devices (with normally open contact), such as manual switches to wired control terminals, then use them to stop the linear actuator.
1) In Interlocking mode:
When connect two terminals <UP> and <COM>, the linear actuator extends outward. And when connect two terminals <STOP> and <COM>, linear actuator stops.
When connect two terminals <DOWN> and <COM>, the linear actuator inward retracts. And when connect two terminals <STOP> and <COM>, linear actuator stops.
2) In Momentary mode:
When connect two terminals <UP> and <COM>, the linear actuator extends outward. And when disconnect two terminals <UP> and <COM>, linear actuator stops.
When connect two terminals <DOWN> and <COM>, the linear actuator inward retracts. And when disconnect two terminals <DOWN> and <COM>, linear actuator stops.
