Application:

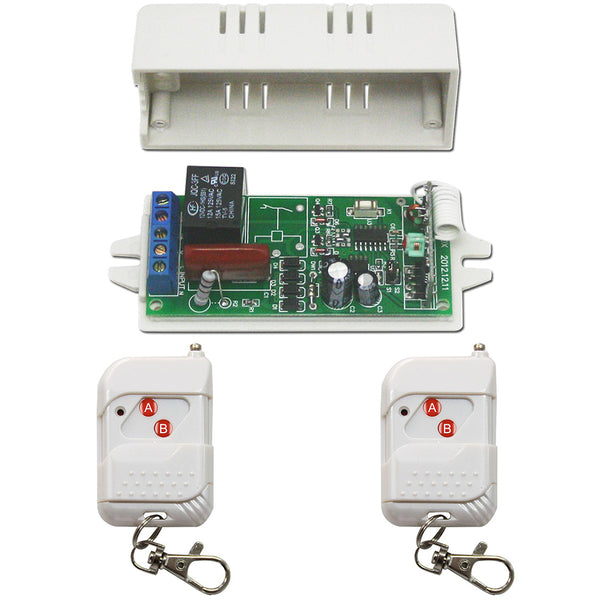

This is a long distance AC 110V 220V 3A wireless remote control switch kit, with 1 channel AC power input output radio receiver and RF transmitter.
This kit can long range remote control low power AC electrical equipments, such as lamps, lights, LED lighting, motors, fans, pump, electric solenoid valves, etc.
Feature:
Wireless control, easy to install.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model No.: S1XC-AC
Power Supply (Operating Voltage): AC100~120V (S1XC-AC110), AC200~240V (S1XC-AC220)
Output Type: AC100~120V (S1XC-AC110), AC200~240V (S1XC-AC220)
Channel: 1 Way
3 Selectable Modes: Self-locking, Momentary, Interlocking
Maximum Load Current of Relay: 3A
Wire Range of Terminals: 22-14AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 80mm x 35mm x 14mm
Case size: 100mm x 40mm x 24mm
Transmitter Parameters:
Model No.: 0020000 (C-1) / 0021001 (C-2)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 1 (C-1) / 2 (C-2)
Button Symbol: No symbol (C-1) / A, B (C-2)
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Operating Frequency: 433MHz
Transmitting Distance: 100 meters / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm
Matching Transmitters:
The receiver can work with different transmitters.
When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model C-1 (100 meters / 300ft), CP-1 (500 meters / 1500ft), or CB-1 (1000 meters / 3000ft), etc.
When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model C-2 (100 meters / 300ft), CP-2 (500 meters / 1500ft), or CB-2 (1000 meters / 3000ft), etc.
Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can use a powerful transmitter, such as CB-1 or CB-2 transmitter.
Usage:
Setting different control modes:
1) Setting Self-locking mode: Only connect S1.
The operation of Self-locking mode with the transmitter C-1 or CB-1:
Press the button on the transmitter: The terminal 1 and 5 outputs AC power, and the connected lamp is turned on.
Press the button again: The terminal 1 and 5 stop outputting, and the connected lamp is turned off.
2) Setting Momentary mode: Do not connect S1 and S2.
The operation of Momentary mode with the transmitter C-1 or CB-1:
Press and hold the button on the transmitter: The terminal 1 and 5 outputs AC power, and the connected lamp is turned on.
Release the button: The terminal 1 and 5 stop outputting, and the connected lamp is turned off.
3) Setting Interlocking mode: Only connect S2.
The operation of Interlocking mode with the transmitter C-2 or CB-2:
Press the button A on the transmitter: The terminal 1 and 5 outputs AC power, and the connected lamp is turned on.
Press the button B on the transmitter: Terminals 1 and 5 stop outputting, and connected lamp is turned off.
