Package Include:
1 x Receiver: S1FC-AC
1 x transmitter: CA-3
1 x User manual
Application:
This long distance 200 meters 1 channel AC 120V 220V wireless remote control switch kit with radio receiver and RF transmitter.
The kit can long range remote control single phase electric motor positive rotation, reverse rotation and stop rotation.
It can be used in rolling blinds, rolling doors, projection screens, awnings, winches, conveyors or other appliances and equipments with AC motors.
Features:
Wireless control, easy to install.
Suitable for AC motor.
Support voltage of 110VAC (110V~120V), widely used in the United States, Canada, etc., and voltage of 220VAC (220V~240V), used in the United Kingdom, France, Germany etc.
Two working modes.
You can operate the motor to rotate in positive or reversal direction by using the buttons in the receiver or by the transmitter.
With three manual buttons: You can control the motor by manual buttons.
With limit control terminals: You can connect sensors, limit switches or external devices to stop the motor.
The transmitter / remote can control the receiver from any place within a reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse power protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

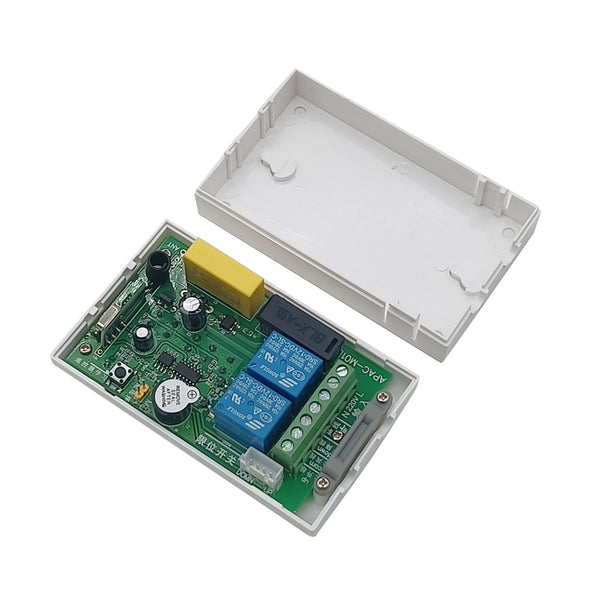

Receiver Parameters:

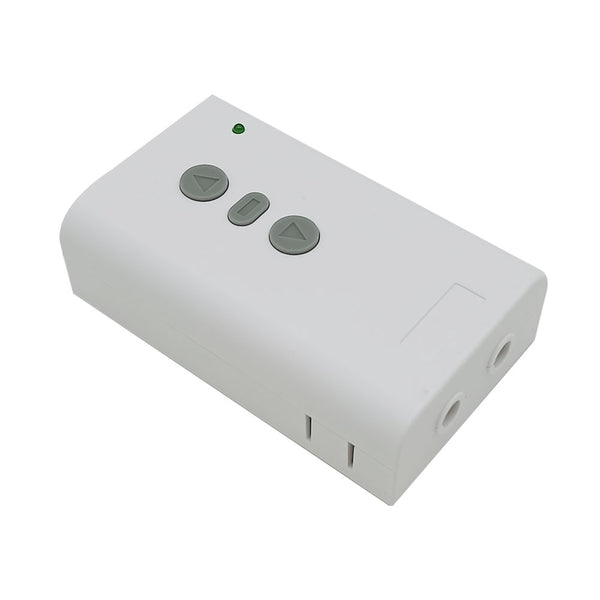

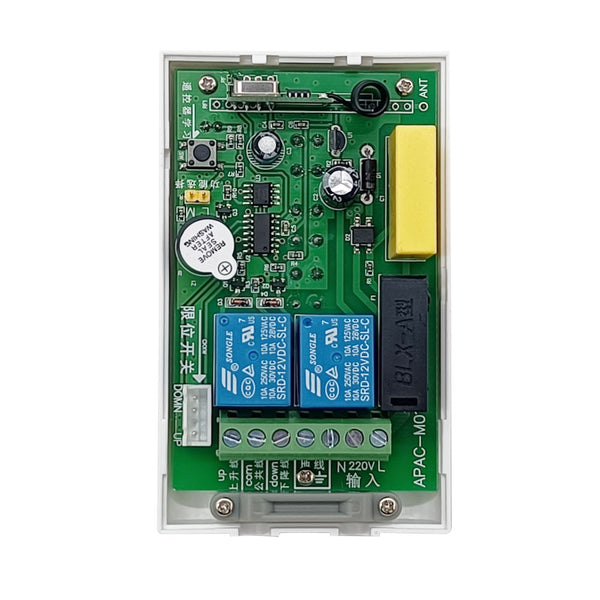

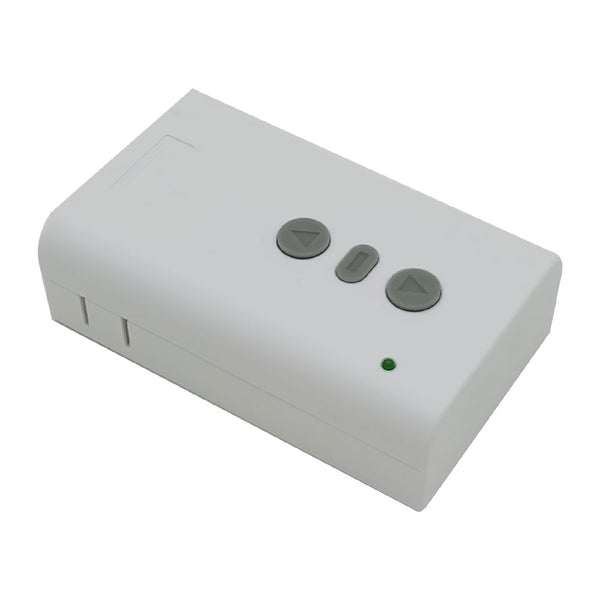

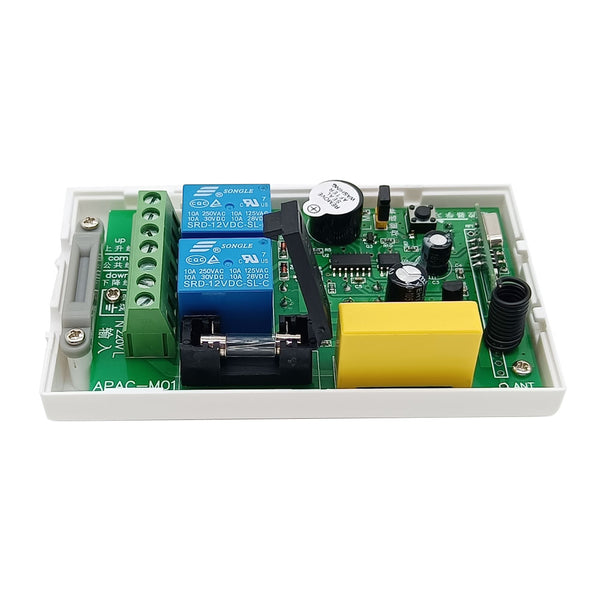

Model: S1FC-AC
Operating Voltage: 110~240VAC (110V/120V/220V/240V)
Output Voltage: 110~240VAC (110V/120V/220V/240V) , the output voltage is the same as input voltage.
Working Frequency: 433.92 MHz
Channel: 1 CH, can work with an AC motor
Quiescent Current: ≤8mA
Rated Current: 5A, so motor's maximum starting current cannot exceed 5A.
Suitable Wires for Connecting Terminals: 22-14 AWG
2 Selectable Working Modes: Interlocking, Momentary
Operating Temperature: -20°C ~ +70°C
Case Size: 100 x 60 x 30 mm (4.0 x 2.4 x 1.2 inches)

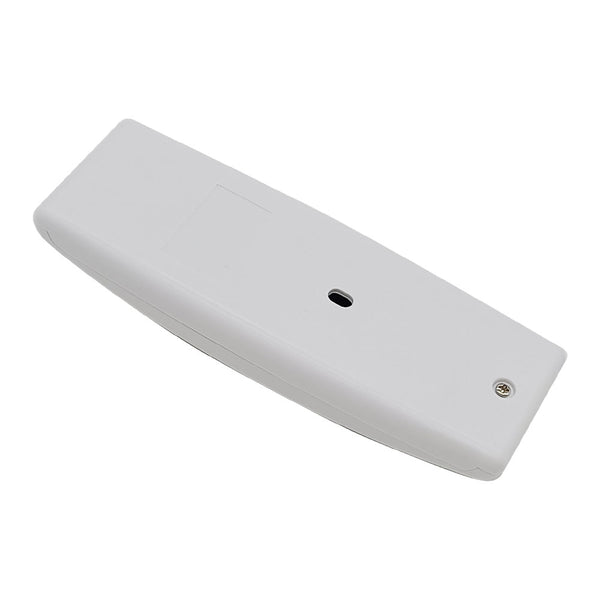

Transmitter Parameters:

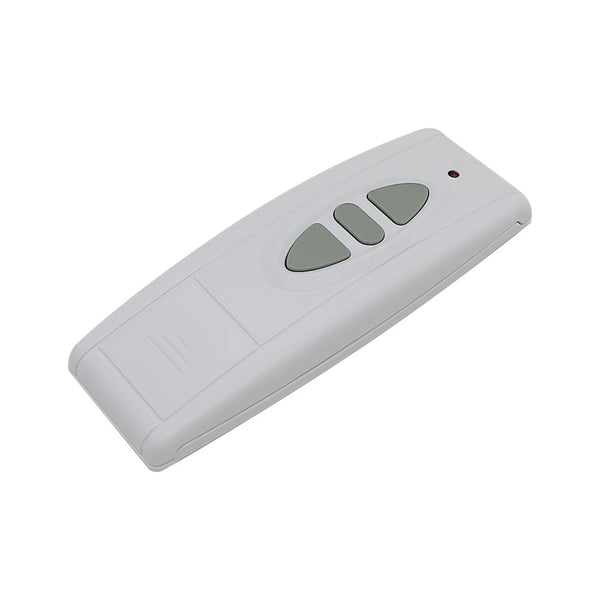

Model: CA-3
Channel / Button: 3
Button Symbol: ▲ ■ ▼

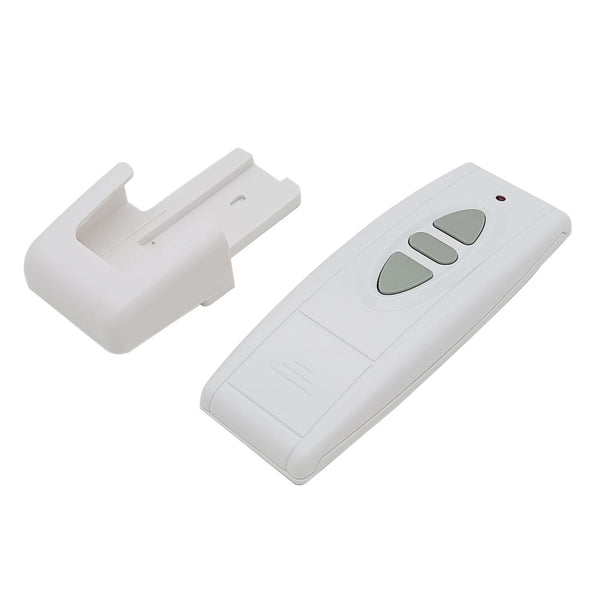

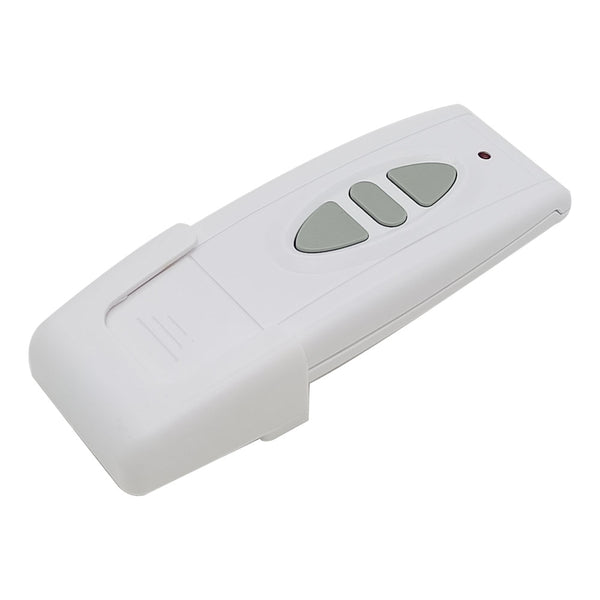

With wall mounting base
Operating Voltage: 12V (1 x 23A -12V battery)
Standby current: 4uA
Operating Current: 14mA
Operating Frequency: 433Mhz
Transmitting Distance: 200m / 600ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 120 x 45 x 18 mm (4.7 x 1.8 x 0.7 inches)
Matching Transmitters:
This receiver can work with different transmitters.
When you set the receiver in momentary mode, it should work with 2 button transmitters, such as model C-2-2 (100 meters), CV-2-2 (500 meters), or CB-2 (1000 meters) etc.
When you set the receiver in Interlocking mode, it should work with 3 or 4 button transmitters, such as model C-3-2 (100 meters), CA-3 (200 meters), CV-4-2 (500 meters), or CB-3-2 (1000 meters) etc.
Working Range:
With a transmitter (such as CA-3) to form a complete set, the maximum working distance can reach 200 meters in an open ground.
The maximum working distance is a theoretical data; it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a high power transmitter, such as a CB-2 or CB-3-2 transmitter.
Setting different control modes:
1) Setting Interlocking mode: Do not short two pins.
The operation by the transmitter, such as CA-3:
Press the button ▲ on the transmitter: Motor rotates in positive direction.
Press the button ▼ on the transmitter: Motor rotates in reversal direction.
Press the button ■ on the transmitter: Motor stops.
The operation by the receiver:
Press the button ▲ on the receiver: Motor rotates in positive direction.
Press the button ▼ on the receiver: Motor rotates in reversal direction.
Press the button ■ on the receiver: Motor stops.
2) Setting Momentary mode: Short two pins with a shouted cap.
The operation by the transmitter, such as CA-3:
Press and hold the button ▲ on the transmitter: Motor rotates in positive direction.
Release the button ▲: Motor stops.
Press and hold the button ▼ on the transmitter: Motor rotates in reversal direction.
Release the button ▼: Motor stops.
The operation by the receiver:
Press and hold the button ▲ on the receiver: Motor rotates in positive direction.
Release the button ▲: Motor stops.
Press and hold the button ▼ on the receiver: Motor rotates in reversal direction.
Release the button ▼: Motor stops.

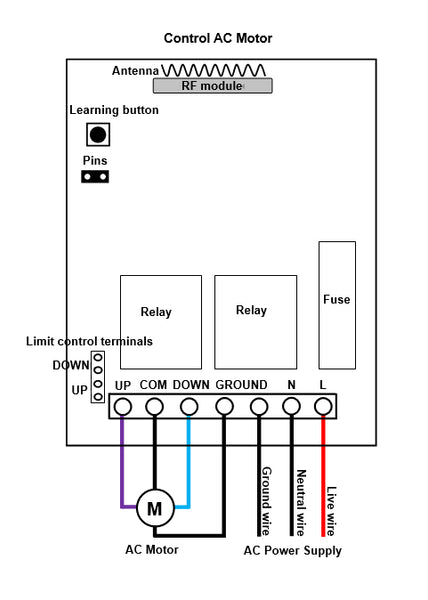

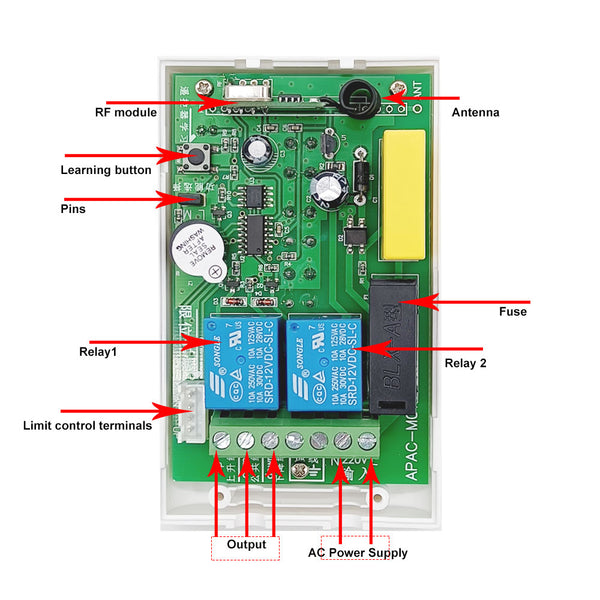

Limit control terminals:
The receiver has limit control terminals, and you can connect external devices (with normally open contact), such as sensors, limit switches to limit terminals, then use them to stop the motor.
For example, you can connect a normally open limit switch to two terminals <UP>, and connect another normally open limit switch to two terminals <DOWN>.
When motor rotates in positive direction, if two terminals <UP> are connected, the motor will stop automatically.
When motor rotates in reversal direction, if two terminals <DOWN> are connected, the motor will stop automatically.
