Application:
This is a long distance 1 channel DC 12V 24V high power 15A wireless remote control switch kit with RF transmitter and radio receivers. For long range control the extension and retraction of electric linear actuator.
It can long range wireless control equipments with linear actuator, such as doors, windows, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, etc.
Features:
Wireless remote control, easy to install.
Two operating voltage versions: DC 12V, 24V optional.
With limit control terminals: You can connect limit switches or sensors to restrict Linear Actuator Stroke.
You can remote control the electric linear actuator extension and retraction.
with the transmitter from any place within a reliable distance.
You also can ccontrol the electric linear actuator extension and retraction by button on the receiver.
With reverse power protection and over current protection.
The RF wireless signal can pass through walls, floors and doors.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

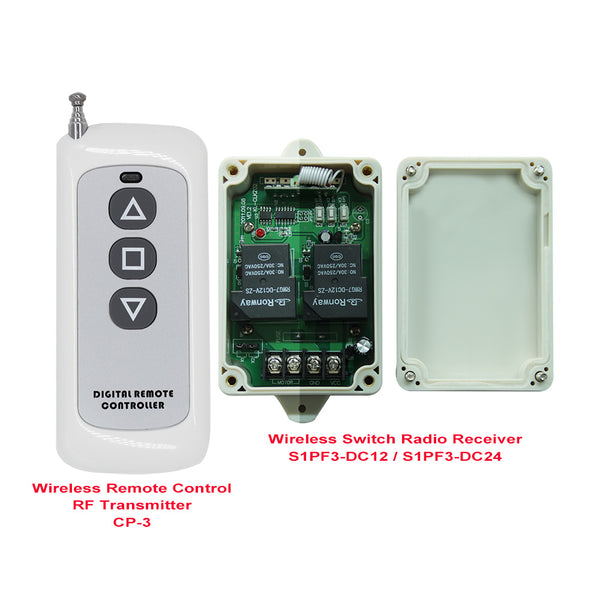

Receiver Parameters:
Model No: S1PF3-DC
Operating Voltage: 12±1VDC (model S1PF3-DC12), or 24±2VDC (model S1PF3-DC24), the operating voltage must be specified when ordering.
Channel: 1 way
Control Mode: Momentary and Interlocking
Quiescent Current: ≤6mA
Rated Current: 15A
The Maximum Instantaneous Current of Starting Motor: 30A
Working Frequency: 433MHz
Wire range for the terminals: 22-12 AWG
Operating Temperature: -20 ° C to +70 ° C
Case size: 100mm x 67mm x 39mm
Matching Transmitters:
This receiver can work with different transmitters. Such as model CWC-3L (50 meters), or CB-3-2 (1000 meters) etc.

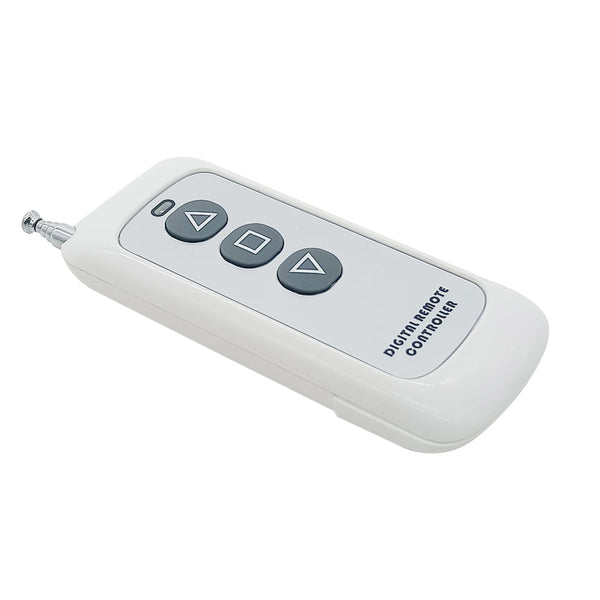

Transmitter Parameters:
Model No.: CWC-3L
Waterproof
Channel/Button: 3
Button Symbol: ▲,▼, =

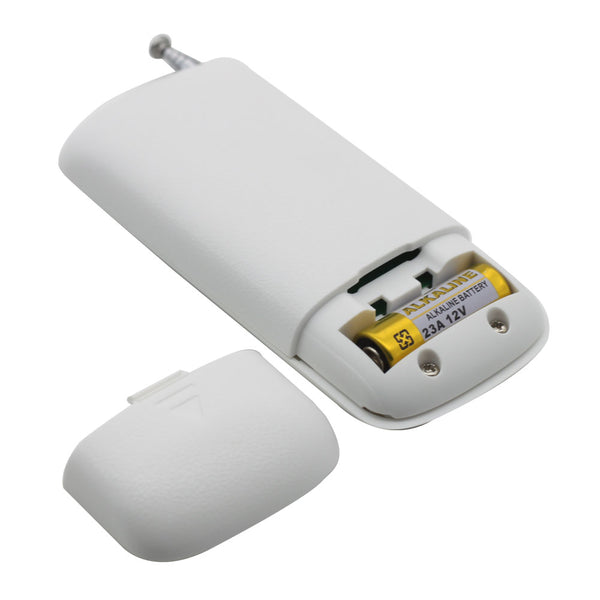

Operating Voltage: 12V (1 x 27A -12V battery, can be used for 12 months)
Operating Current: 4mA
Operating Frequency: 433MHz
Transmitting Distance: 50 meters / 150ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 58mm x 30mm x 12mm
Working Range:
With a transmitter (such as CWC-3L) to form a complete set, the maximum working distance can reach 50 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as transmitter CB-3-2.
Setting different control modes:
1) Setting Interlocking mode: Connect JP1 or disconnect JP1&JP2
1-1) Control linear actuator by transmitter CWC-3L:
Press button ▲ of the transmitter: The electric linear actuator connected to receiver extends outward.
Press button = of the transmitter: The electric linear actuator connected to receiver stops extending outward.
Press button ▼ of the transmitter: The electric linear actuator connected to receiver retracts inward.
Press button = of the transmitter: The electric linear actuator connected to receiver stops retracting inward.
1-2) Control linear actuator by manual buttons in receiver:
Press button K3 in receiver: The electric linear actuator connected to receiver extends outward.
Press button K1 in receiver: The electric linear actuator connected to receiver retracts inward.
Press button K2 in receiver: The electric linear actuator connected to receiver stops.
2) Setting Momentary mode: Connect JP2
2-1) Control linear actuator by transmitter CWC-3L:
Press and hold button ▲ of the transmitter: The electric linear actuator connected to receiver extends outward.
Release button ▲: The electric linear actuator connected to receiver stops extending outward.
Press and hold button▼ of the transmitter: The electric linear actuator connected to receiver retracts inward.
Release button ▼: The electric linear actuator connected to receiver stops retracting inward.
2-2) Control linear actuator by manual buttons in receiver:
Press and hold button K3 in receiver: The electric linear actuator connected to receiver extends outward.
Release button K3 in receiver: The electric linear actuator stops.
Press and hold button K1 in receiver: The electric linear actuator connected to receiver retracts inward.
Release button K1 in receiver: The electric linear actuator stops.
Restrictive function:
You can connect two limit switches or sensors (normally close type) to terminals “X1” and “X2”, and then you can use limit switches or sensors to restrict Linear Actuator Stroke.
When the electric linear actuator extends, if the actuator collides with the external limit switch, the electric linear actuator will stop automatically.
When the electric linear actuator retracts, if the actuator collides with the external limit switch, the electric linear actuator will stop automatically.
Package Include:
1 x Receiver: S1PF3-DC
2 x transmitter: CWC-3L
1 x User manual
