Package Include:
1 x Receiver: S4X-AC-ANT3
2 x Transmitter: C-4
1 x User manual
Application:
This 4 channels AC power 120V 220V input output 10A wireless remote control switch kit with waterproof radio receiver and RF transmitter.
The kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc.
It can long range remote control AC devices, such as lamp, lights, motor, fan, pump, electric solenoid valves, outlets, sockets, door lock, heater, etc.
Feature:
Wireless remote control, easy to install.

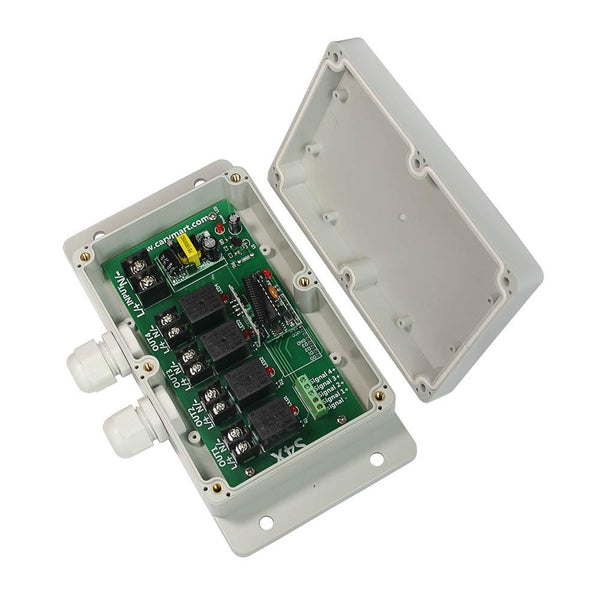

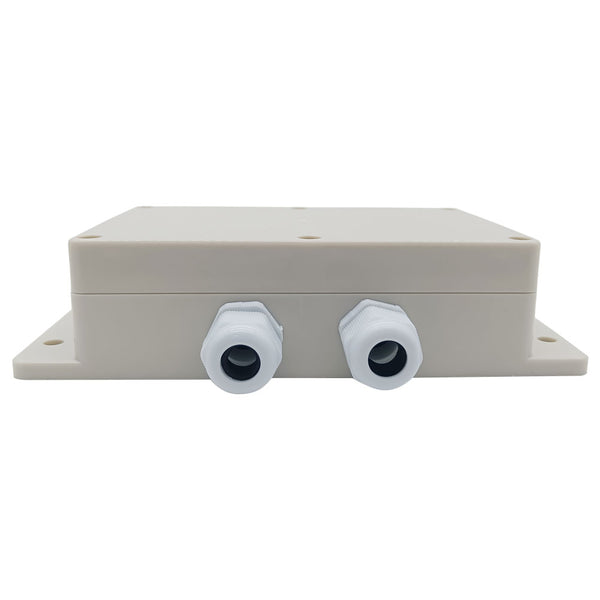

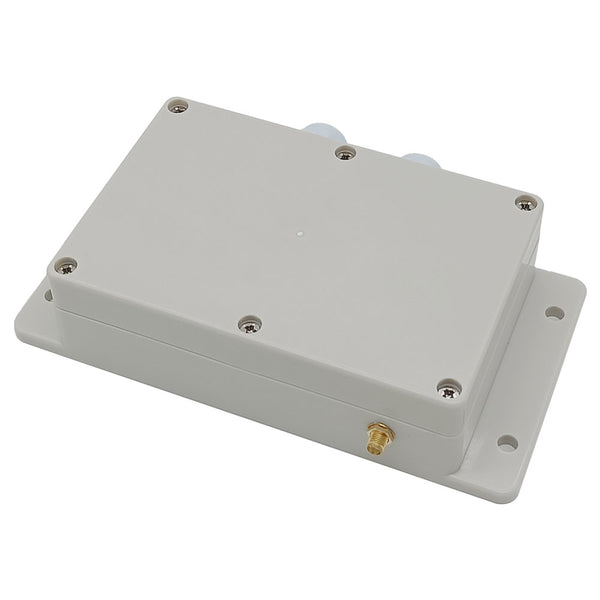

Waterproof: The receiver has waterproof case and waterproof connector; it can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.

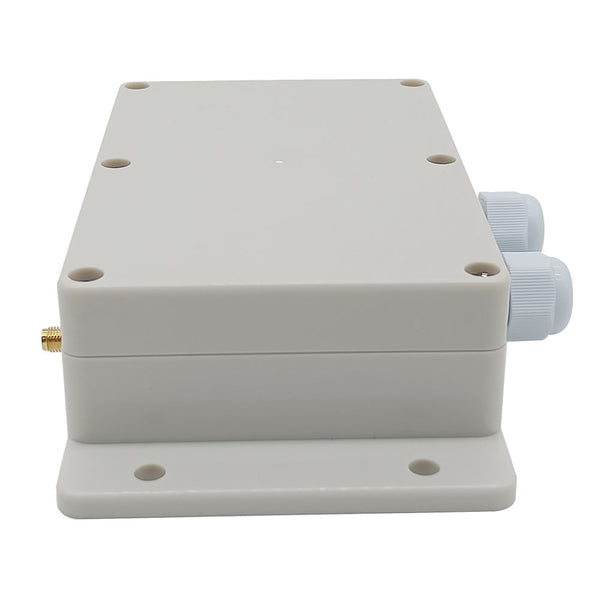

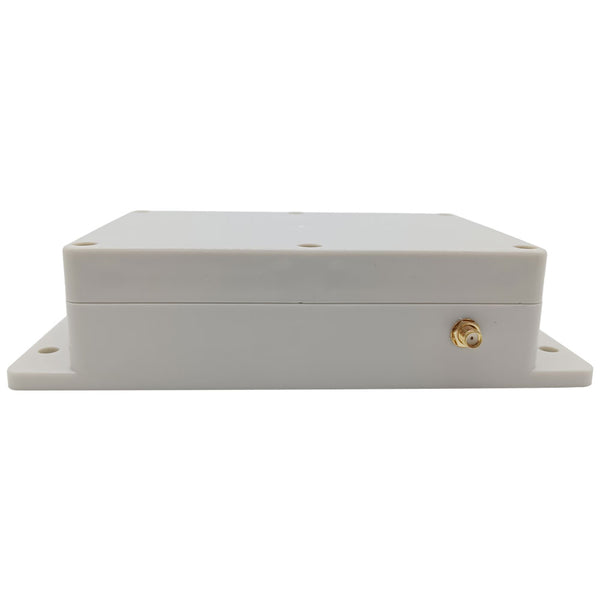

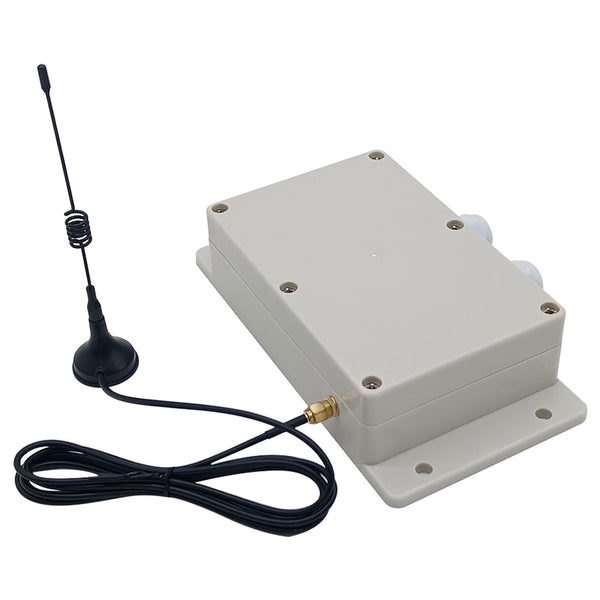

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

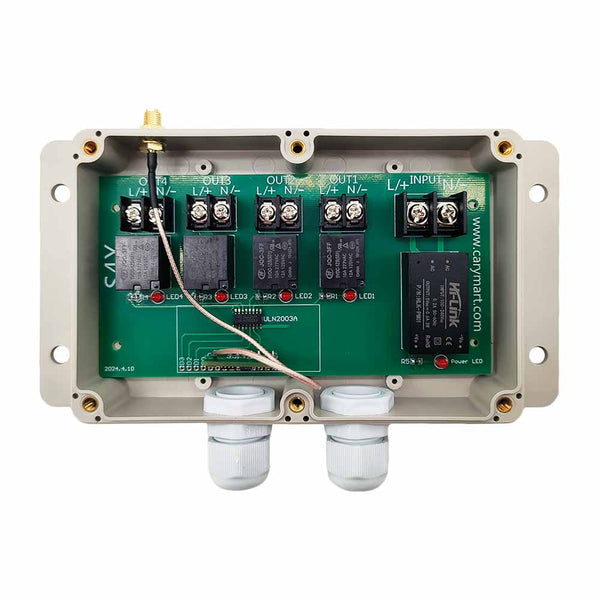

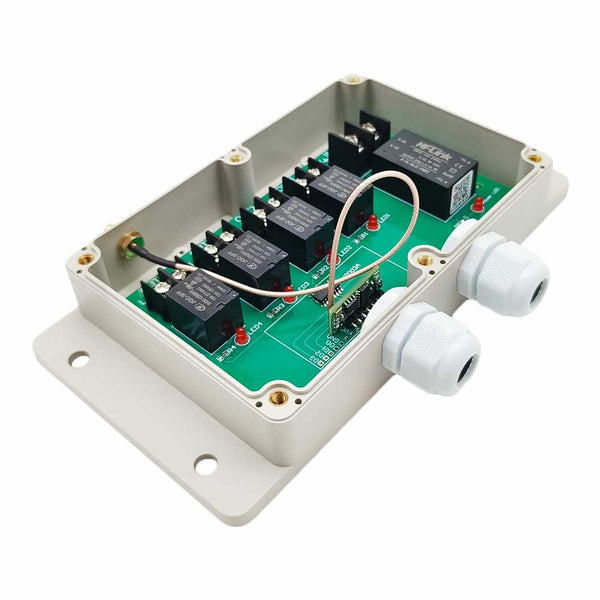

Receiver Parameters:
Model No.: S4X-AC-ANT3
Operating Voltage: 100~240VAC (110V/120V/220V/240V)
Output Type: 100~240VAC (110V/120V/220V/240V)
Channel: 4 Ways
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Quiescent Current: ≤6mA
Maximum load current per channel: 10A
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 140mm x 73mm x 18mm
Case size: 192mm x 100mm x 45mm

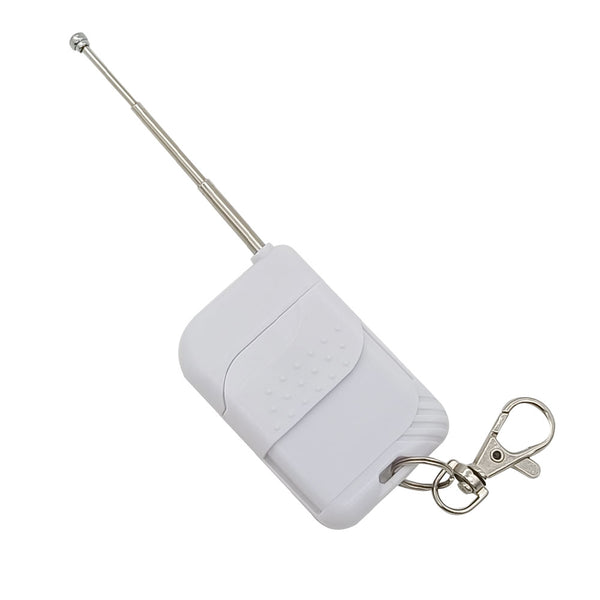

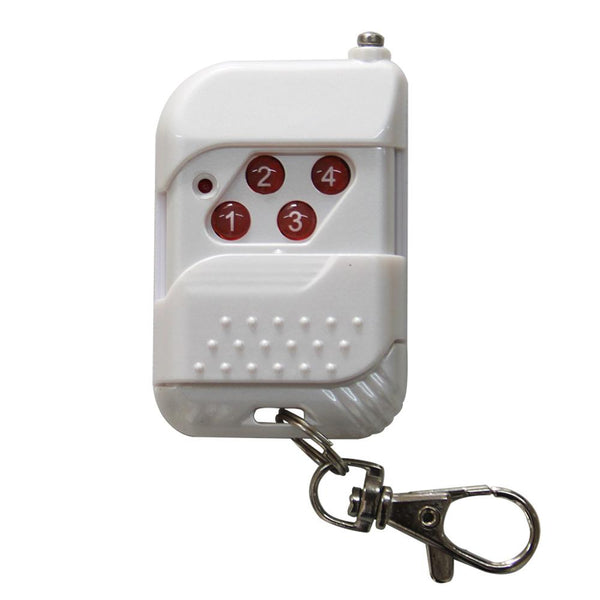

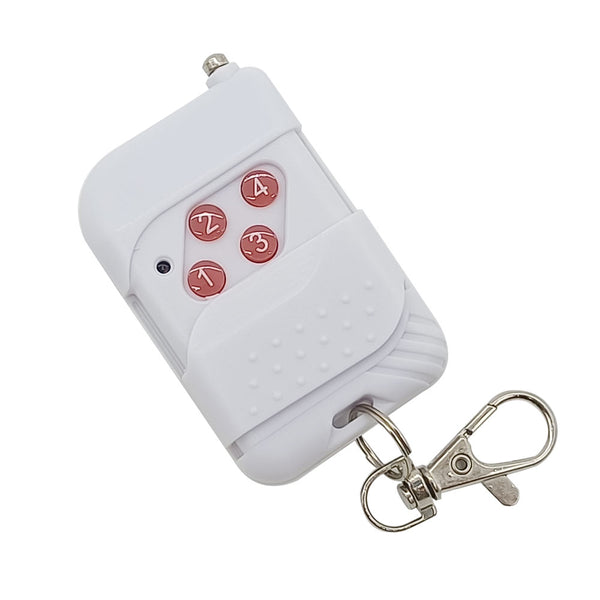

Transmitter Parameters:
Model No.: 0021003 (C-4)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 4
Button Symbol: 1, 2, 3, 4
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 6mA
Operating Frequency: 433.92 MHz
Transmitting Distance: 100m / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm
Matching Transmitters:
The receiver can work with different transmitters, such as model C-4 (100 meters), CP-4 (500 meters) CD -4 (1000 meters, waterproof, industrial), or CB -4 (1000 meters).
Working Range:
With a transmitter (such as C-4) to form a complete set, the maximum working distance can reach 100 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-4 transmitter.
Usage:

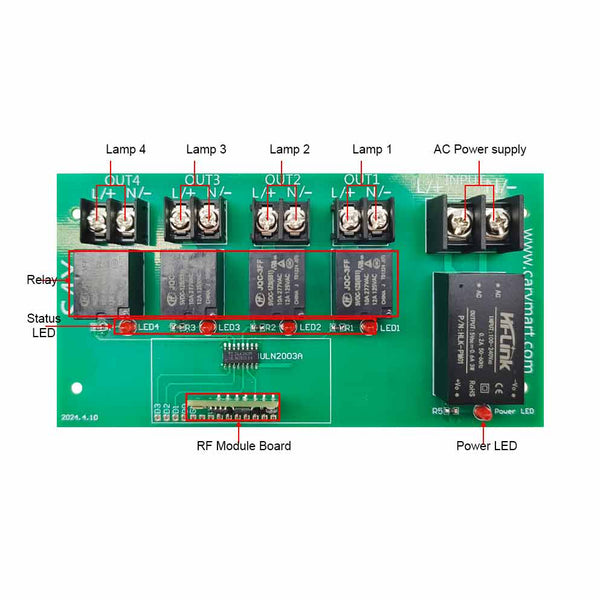

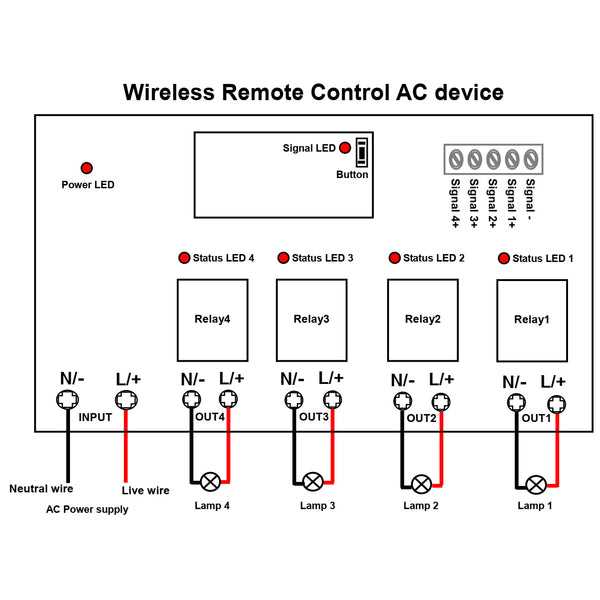

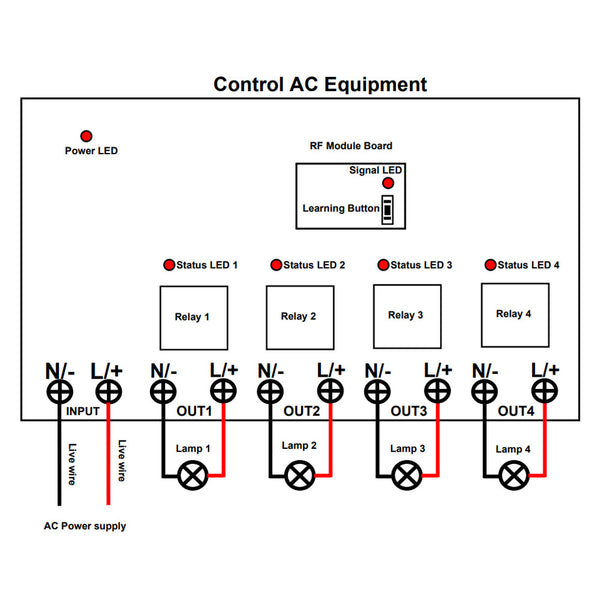

The receiver can be used to control AC 110~240V equipments.
Setting different control modes:
1) Setting Momentary mode (work with transmitter C-4): Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Press and hold the button 1 on the transmitter: The terminals “OUT1” outputs AC power, and the connected lamp 1 is turned on.
Release the button 1: The terminals “OUT1” stops outputting, and the connected lamp 1 is turned off.
Press and hold the button 2 on the transmitter: The terminals “OUT2” outputs AC power, and the connected lamp 2 is turned on.
Release the button 2: The terminals “OUT2” stops outputting, and the connected lamp 2 is turned off.
Press and hold the button 3 on the transmitter: The terminals “OUT3” outputs AC power, and the connected lamp 3 is turned on.
Release the button 3: The terminals “OUT3” stops outputting, and the connected lamp 3 is turned off.
Press and hold the button 4 on the transmitter: The terminals “OUT4” outputs AC power, and the connected lamp 4 is turned on.
Release the button 4: The terminals “OUT4” stops outputting, and the connected lamp 4 is turned off.
2) Setting Self-locking mode (work with transmitter C-4): Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Press the button 1 on the transmitter: The terminals “OUT1” outputs AC power, and the connected lamp 1 is turned on.
Press the button 1 again: The terminals “OUT1” stops outputting, and the connected lamp 1 is turned off.
Press the button 2 on the transmitter: The terminals “OUT2” outputs AC power, and the connected lamp 2 is turned on.
Press the button 2 again: The terminals “OUT2” stops outputting, and the connected lamp 2 is turned off.
Press the button 3 on the transmitter: The terminals “OUT3” outputs AC power, and the connected lamp 3 is turned on.
Press the button 3 again: The terminals “OUT3” stops outputting, and the connected lamp 3 is turned off.
Press the button 4 on the transmitter: The terminals “OUT4” outputs AC power, and the connected lamp 4 is turned on.
Press the button 4 again: The terminals “OUT4” stops outputting, and the connected lamp 4 is turned off.
3) Setting Interlocking mode (work with transmitter C-4): Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Press the button 1 on the transmitter: The terminals “OUT1” outputs AC power, and the connected lamp 1 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
Press the button 2 on the transmitter: The terminals “OUT2” outputs AC power, and the connected lamp 2 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
Press the button 3 on the transmitter: The terminals “OUT3” outputs AC power, and the connected lamp 3 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
Press the button 4 on the transmitter: The terminals “OUT4” outputs AC power, and the connected lamp 4 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
4) Setting Momentary (Channel 1~2) + Self-locking (Channel 3~4) mode: Press the learning button in the receiver 5 times, signal LED continuously flashes 5 times and then goes off.
