Application:
This wireless RF remote control switch (receiver) is an electric device with 4 channel DC power output, it and the transmitter form a radio transmitter and receiver system. This system may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long range remote control lamp/light, solar light, fan, motor, pump, solenoid valve, door lock, gates, etc.
Feature:
Wireless control, easy to install.

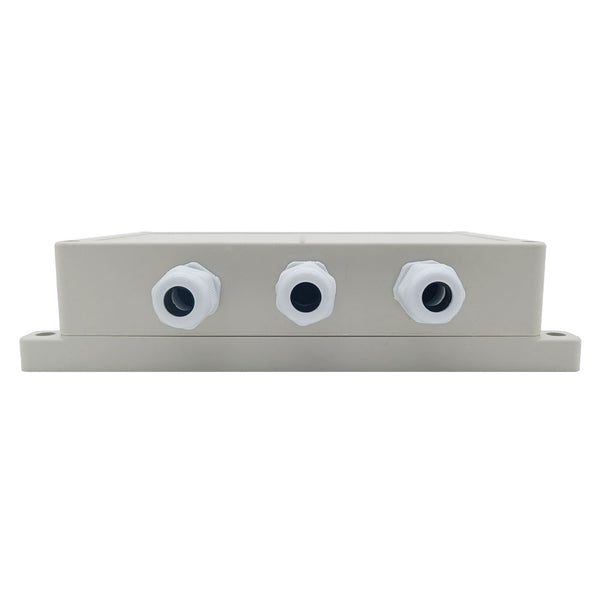

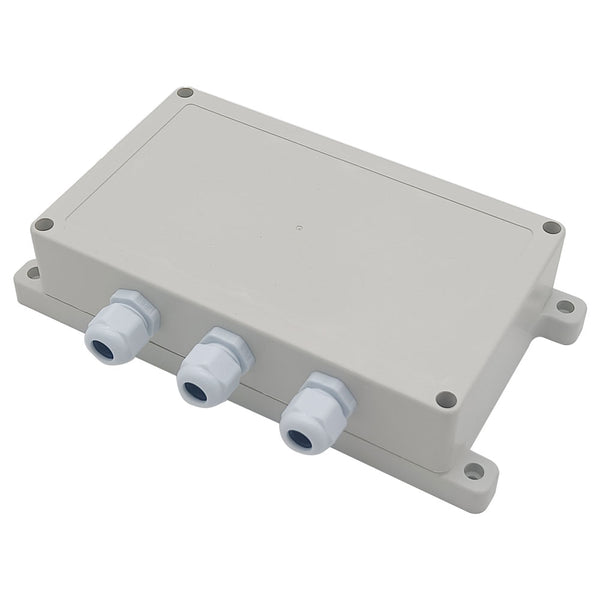

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
DC Power Output: It can control DC equipment with voltage DC 6V, 9V, 12V or 24V.
High Power: Each channel can work at maximum load current 30A.
With wired control terminals: You can connect sensors, limit switches, manual switches or external devices to control the receiver.

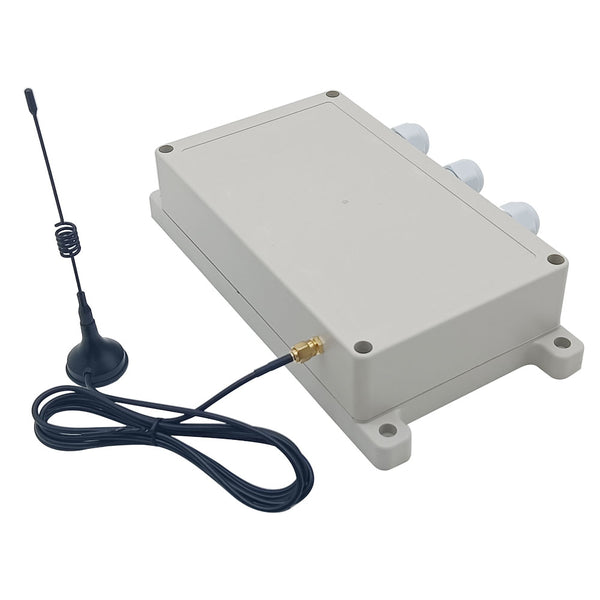

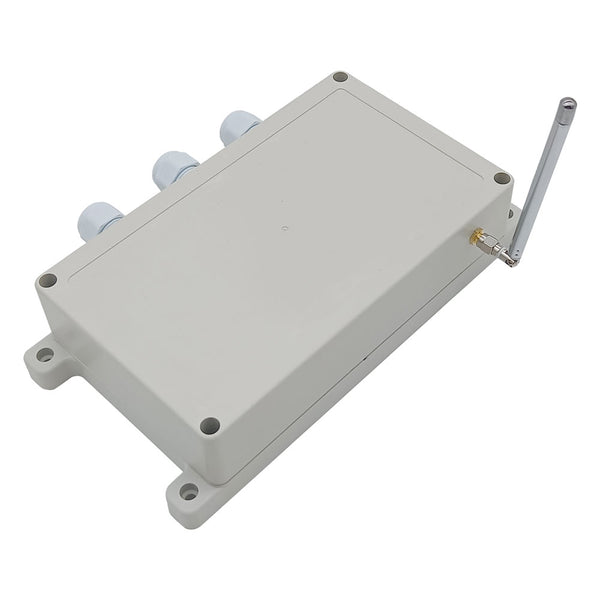

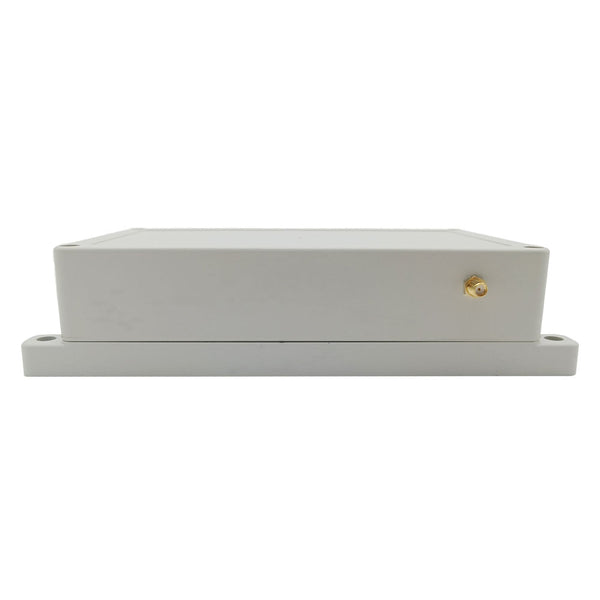

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model No.: S4PX-DC
Power Supply (Operating Voltage): DC6V (S4PX-DC06), DC12V±1V (S4PX-DC12), DC9V±1V (S4PX-DC09), DC24V±1V (S4PX-DC24), the operating voltage must be specified when ordering.
Output: DC6V (S4PX-DC06), DC12V (S4PX-DC12), DC9V (S4PX-DC09), DC24V (S4PX-DC24)
Channel: 4 CH
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A/Channel
Selectable Modes: Self-locking, Momentary, Interlocking
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C

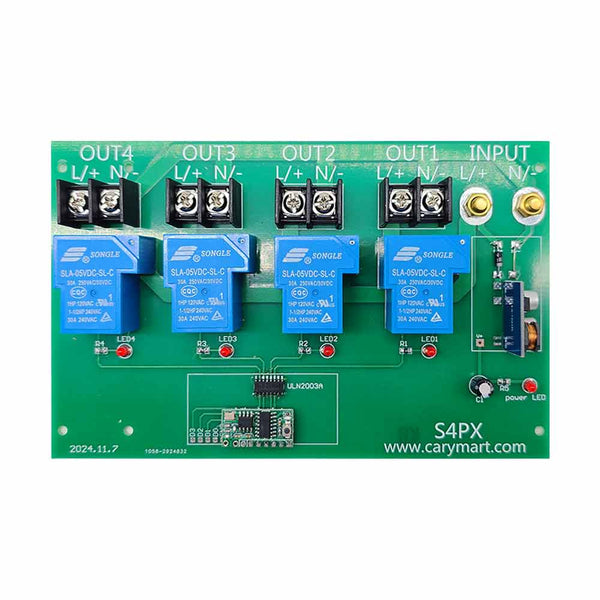

PCB size: 170 x 100 x 18mm (6.7x 4.0 x 0.7 inches)

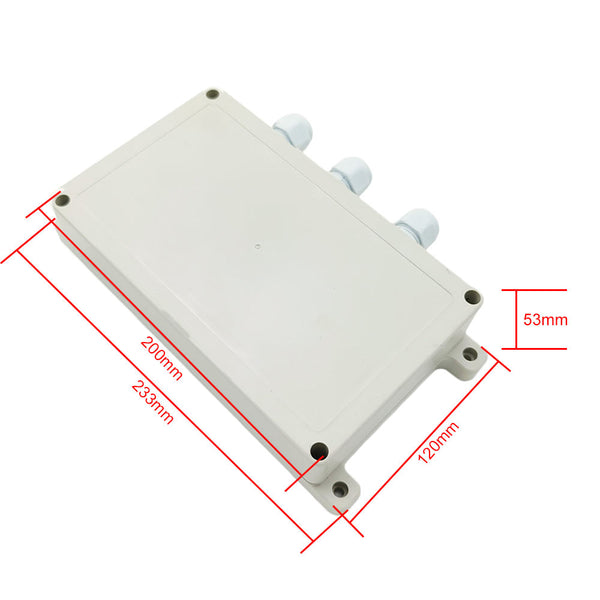

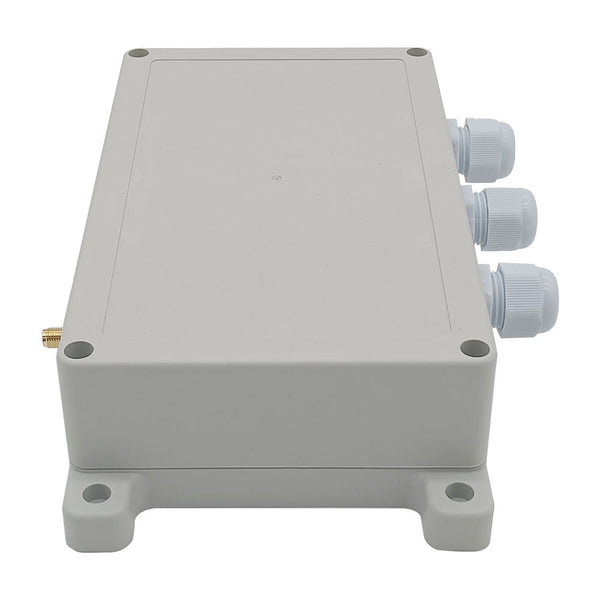

Case size: 200 x 120 x 53 mm (7.9x 4.0 x 2.0 inches)
Matching Transmitters:
The receiver can work with different transmitters, such as model C-4 (100 Meter / 300 feet range), CP-4 (500 Meter / 1500 feet range) or CB -4 (1000 Meter / 3000 feet range).
Working Range:
With a transmitter (such as C-4) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can use a powerful transmitter, such as CB-4 transmitter.
Usage:
The receiver can be used to control DC 6V / 9V / 12V / 24V equipments. If the power supply of those equipments is DC 12V, you should choose the receiver with same DC 12V version; and if the power supply of those equipments is DC 24V, you should choose the receiver with same DC 24V version.
Setting different control modes:
1) Setting control mode Self-locking (with the transmitter C-4): Only connect Jumper-2.
Press button 1 on the transmitter: Terminal "OUT 1"of the receiver outputs DC power, and the connected light is turned on.
Press button 1 again: Terminal "OUT 1"of the receiver stops outputting, and the connected light is turned off.
Press button 2 on the transmitter: Terminal "OUT 2"of the receiver outputs DC power, and the connected light is turned on.
Press button 2 again: Terminal "OUT 2"of the receiver stops outputting, and the connected light is turned off.
...
Press button 4 on the transmitter: Terminal "OUT 4"of the receiver outputs DC power, and the connected light is turned on.
Press button 4 again: Terminal "OUT 4"of the receiver stops outputting, and the connected light is turned off.
2) Setting control mode Momentary (with the transmitter C-4): Only connect Jumper-1.
Press and hold button 1 on the transmitter: Terminal "OUT 1"of the receiver outputs DC power, and the connected light is turned on.
Release button 1: Terminal "OUT 1"of the receiver stops outputting, and the connected light is turned off.
Press and hold button 2 on the transmitter: Terminal "OUT 2"of the receiver outputs DC power, and the connected light is turned on.
Release button 2: Terminal "OUT 2"of the receiver stops outputting, and the connected light is turned off.
...
Press and hold button 4 on the transmitter: Terminal "OUT 4"of the receiver outputs DC power, and the connected light is turned on.
Release button 4: Terminal "OUT 4"of the receiver stops outputting, and the connected light is turned off.
3) Setting control mode Interlocking (with the transmitter C-4): Do not connect Jumper-1 and Jumper-2.
Press button 1 on the transmitter: Terminal "OUT 1"of the receiver outputs DC power, and the connected light is turned on; Other 3 terminals stop outputting, and the connected light is turned off.
Press button 2 on the transmitter: Terminal "OUT 2"of the receiver outputs DC power, and the connected light is turned on; Other 3 terminals stop outputting, and the connected light is turned off.
...
Press button 4 on the transmitter: Terminal "OUT 4"of the receiver outputs DC power, and the connected light is turned on; Other 3 terminals stop outputting, and the connected light is turned off.

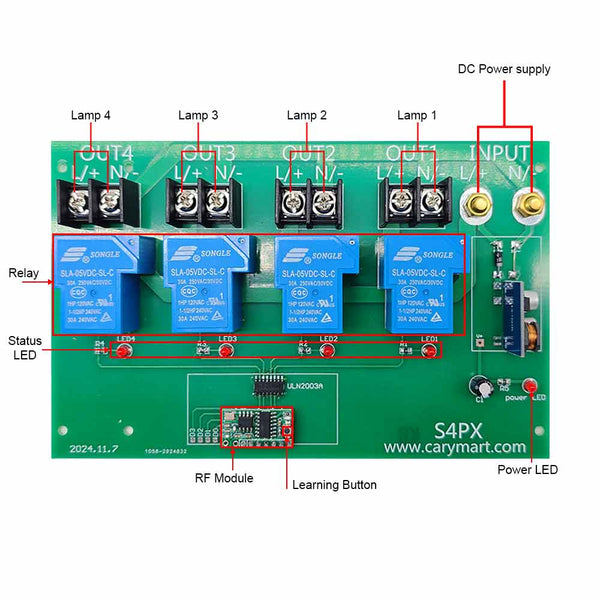

Wired control terminals:
The receiver has wired control terminals, and you can connect external devices, sensors, or manual switches to these terminals, then use them to control the receiver.
1) By low level signal:
You can connect the external devices (with low level output signal) to the terminal “Signal 1”, “Signal 2”, “Signal 3”, “Signal 4” and the terminal “COM”, then use the external devices to control the receiver.
When the external device outputs low level signal to the terminals “Signal 1” and “COM”, the terminals “OUT1” outputs DC power, and the connected lamp 1 is turned on.
When the external device stops to output signal, the terminals “OUT1” stops outputting, and the connected lamp 1 is turned off.
……
When the external device outputs low level signal to the terminals “Signal 4” and “COM”, the terminals “OUT4” outputs DC power, and the connected lamp 4 is turned on.
When the external device stops to output signal, the terminals “OUT4” stops outputting, and the connected lamp 4 is turned off.
2) By NO/NC contact:
You can connect the manual switches (with NO/NC contact) to the terminal “Signal 1”, “Signal 2”, “Signal 3”, “Signal 4” and the terminal “COM”, then use the manual switches to control the receiver.
When connect the terminals “Signal 1” and “COM” by the manual switch, the terminals “OUT1” outputs DC power and the connected lamp 1 is turned on.
When disconnect the terminals “Signal 1” and “COM” by the manual switch, the terminals “OUT1” stops outputting, and the connected lamp 1 is turned off.
……
When connect the terminals “Signal 4” and “COM” by the manual switch, the terminals “OUT4” outputs DC power and the connected lamp 4 is turned on.
When disconnect the terminals “Signal 4”and “COM” by the manual switch, the terminals “OUT4” stops outputting, and the connected lamp 4 is turned off.
Package Include:
1 x Receiver: S4PX-DC-ANT3
1 x User manual
