Application:
This is a 2 channels high power 30A remote control switch kit with radio receiver and RF transmitter, for wireless control the positive rotation or reverse rotation of DC motors.
It can be used in DC electric rolling blinds, electric rolling doors, electric projection screens, electric awnings, conveyors or other equipments with DC motor.
Features:
Wireless remote control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
3 Operating voltage versions: DC 9V, 12V, 24V optional.
High Power: Each channel can work at maximum current 30A.
You can remote control two DC motors positive rotation, reverse rotation or stop rotation with the transmitter from any place within a reliable distance.
With reverse power protection.
With limit control terminals: You can connect limit switches or sensors to stop the motor.

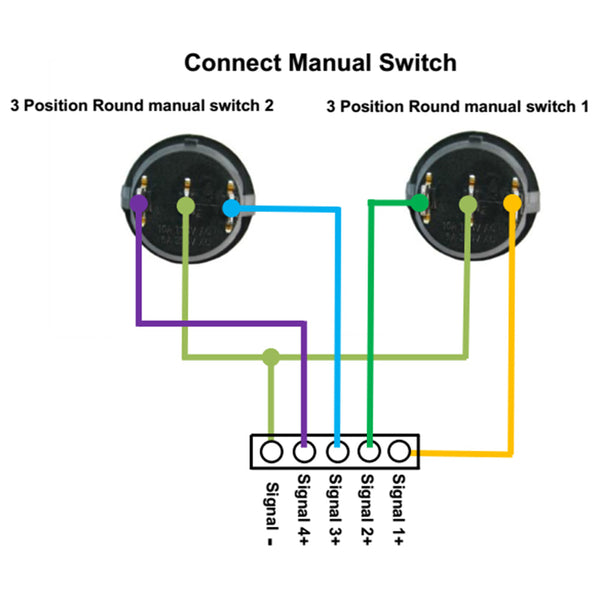

With wired control terminals: You can connect manual switches or external devices (with low level output signal, such as sensors) to control the motor.
The RF wireless signal can pass through walls, floors and doors.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

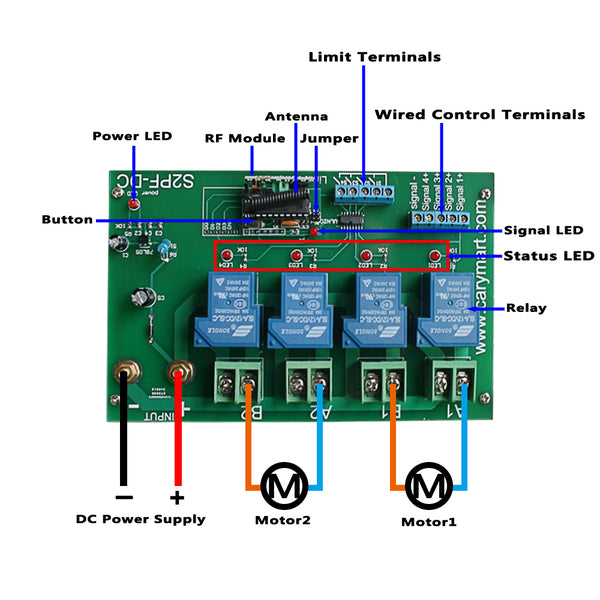

Receiver Parameters:
Model No: S2PF-DC
Operating Voltage: 9±1VDC (model S2PF-DC09), or 12±1VDC (model S2PF-DC12), or 24±2VDC (model S2PF-DC24), the operating voltage must be specified when ordering.
Output: DC9V (S2PF-DC09), DC12V (S2PF-DC12), DC24V (S2PF-DC24)
Control Mode: Momentary and Interlocking
Channel: 2 Way
Quiescent Current: ≤6mA
Maximum Working Current: 30A / each channel, so motor's maximum starting current can not exceed 30A.
Working Frequency: 433.92 MHz
Wire range for the terminals: 22-12 AWG
Operating Temperature: -20 ° C to +70 ° C
PCB size: 170 x 100 x 18mm (6.7x 4.0 x 0.7 inches)
Case size: 200 x 120 x 53 mm (7.9x 4.0 x 2.0 inches)
Matching Transmitters:
This receiver can work with different transmitters. Such as model CV-6-2(500 meters), or CB-6 (1000 meters).
Transmitter Parameters:
Model No.: 0021052 (CV-6-2)
Channel/Button: 6
Button Symbol: Two▲, Two▼, Two■
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433.92 MHz
Transmitting Distance: 500 meters / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm
Working Range:
With a transmitter (such as CV-6-2) to form a complete set, the maximum working distance can reach 500 metersin an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as transmitter CB-6.
Setting different control modes:
1) Setting Interlocking mode: Do not connect Jumper-1 (CN1) or Jumper-2 (CN2)
Mode Interlocking (working with transmitter CV-6-2):
Press button ▲ on the left: motor 1 rotates in positive direction.
Press button ▼ on the left: motor 1 rotates in reversal direction.
Press button ■ on the left: motor 1 stops.
Press button ▲ on the right: motor 2 rotates in positive direction.
Press button ▼ on the right: motor 2 rotates in reversal direction.
Press button ■ on the right: motor 2 stops.
2) Setting Momentary mode: Only connect Jumper-1 (CN1)
Mode Momentary (working with transmitter CV-6-2):
Press and hold button ▲ on the left: motor 1 rotates in positive direction. Release button ▲ on the left: motor 1 stops.
Press and hold button▼ on the left: motor 1 rotates in reversal direction. Release button ▼ on the left: motor 1 stops.
Press and hold button ▲ on the right: motor 2 rotates in positive direction. Release button▲ on the right: motor 2 stops.
Press and hold button▼ on the right: motor 2 rotates in reversal direction. Release button ▼ on the right: motor 2 stops.
Limit control terminals:
Limit control terminals S1, S2, S3 and S4 are normally open, you can connect limit switches or sensors (normally open type) to terminals S1, S2, S3 and S4, and then you can use limit switches or sensors to stop the motor.
When motor 1 rotates in positive direction, if connect two terminals of S1, the motor 1 will stop automatically.
When motor 1 rotates reversal direction, if connect two terminals of S2, the motor 1 will stop automatically.
When motor 2 rotates in positive direction, if connect two terminals of S3, the motor 2 will stop automatically.
When motor 2 rotates reversal direction, if connect two terminals of S4, the motor 2 will stop automatically.
Package Include:
1 x Receiver: S2PF-DC
1 x Transmitter: CV-6-2
1 x User manual
