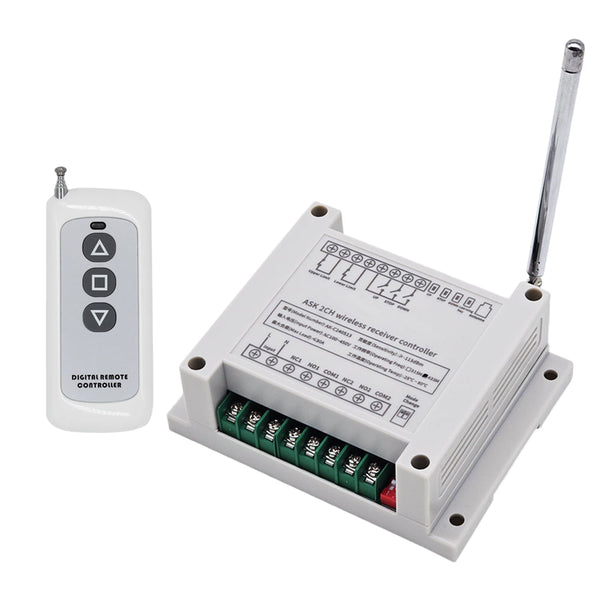

Application:
This is an AC three-phase wireless remote control switch kit, with RF receiver and radio transmitter. This receiver is an electric device with 2 channel relay output, it and the transmitter form a receiver transmitter system. This system can long range remote control the 3 phase AC electric motor to rotate in the forward or reverse direction.
Feature:
Wireless control, easy to install.
Universal Power Supply: AC 220~380V, support AC 220V, AC 240V, AC 380V.
Relay Output: This receiver is relay output, it can be used to operate both DC and AC equipments. The terminals are NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to equipments.
High Power: Each channel can work at maximum current 30A.
With 3 manual buttons: You can press the manual buttons to control the equipments.
With external telescopic antenna, the receiver have a farther working range.
You can control the equipments by using the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With characteristics of reverse power protection and over current protection.
Reliable control: The code has thousands of different combinations, and the receiver only works with the transmitter which use the same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

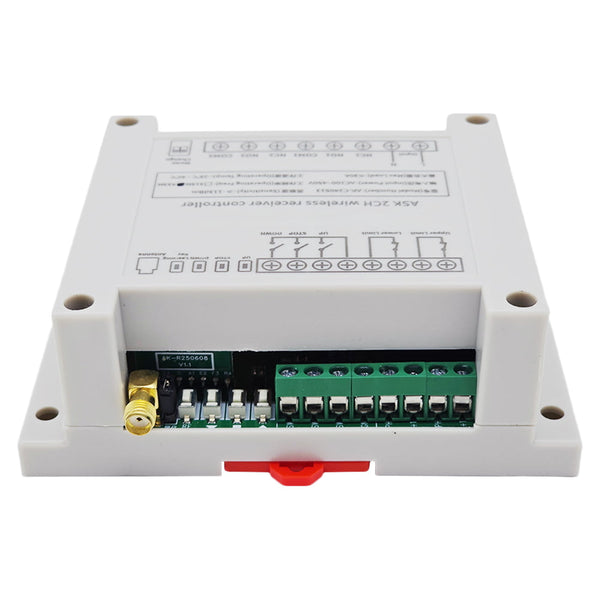

Receiver Parameters:
Model No.: S2PU-AC380
Power Supply (Operating Voltage): AC 220V~380V (220V/240V/380V)
Output: Relay output (Normally open and normally closed)
Wire range for the terminals: 22-12 AWG
Working Frequency: 433.92MHz
Channel: 2 CH
Control Modes: Momentary, Interlocking
Static Current: ≤6mA
Maximum Load Current: 30 A / each channel
Operating Temperature: -20 ° C to +70 ° C
PCB size: 92mm x 86mm x 24mm
Case size: 115mm x 90mm x 40mm

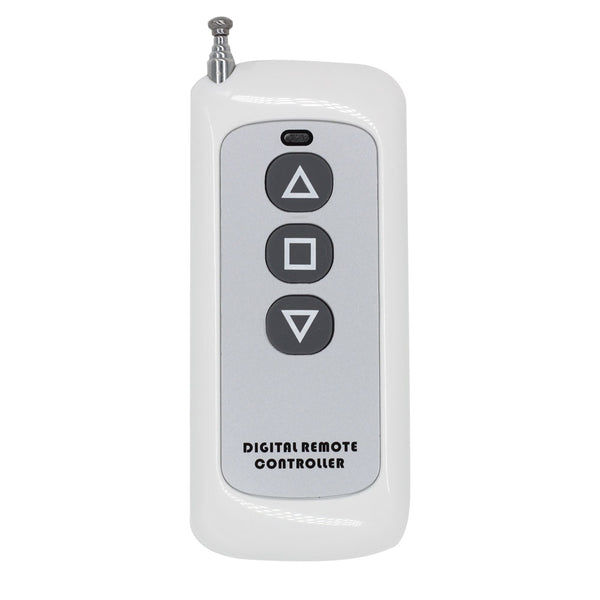

Transmitter Parameters:
Model No.: CG-3
With Wall Mounted Support
Channel/Button: 3
Button Symbol: ▲, ■, ▼

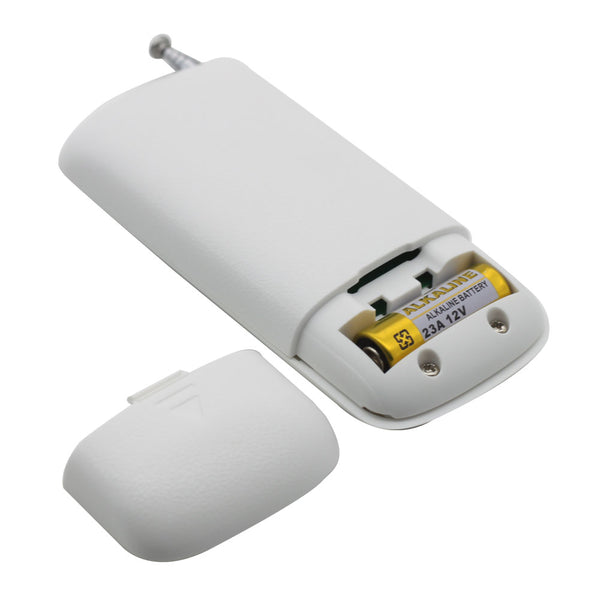

Operating Voltage: 12V (1 x 27A -12V battery, can be used for 12 months)
Operating Current: 8mA
Operating Frequency: 433Mhz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Unit Size: 84mm x 30mm x 10mm
Fixing Bracket size: 87mm x 63mm x 10mm
Matching Transmitters:
The receiver can work with different transmitters, such as model C-3-2 (100 metres), CB-3-2 (1000 metres) etc.
Working Range:
With a transmitter (such as CG-3) to form a complete set, the maximum working distance can reach 500 metres in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can replace the external antenna on the receiver or use a high-power transmitter, such as CB transmitter.
Usage (with the transmitter CG-3):
The receiver can be used to control AC 220V pumps, motors and other equipments, or AC 380V equipments by the 380V contactors, and it can’t directly connected to the 380V equipments.
Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals NO and COM are Normally Open; Terminals NC and COM are Normally Closed.
Setting different control modes:
1) Setting Interlocking mode: Turn on the dip switch 1, and turn off the dip switch 2.
Mode Interlocking (working with transmitter CG-3 or CB-3-2): Press -> On; Press another button -> Off.

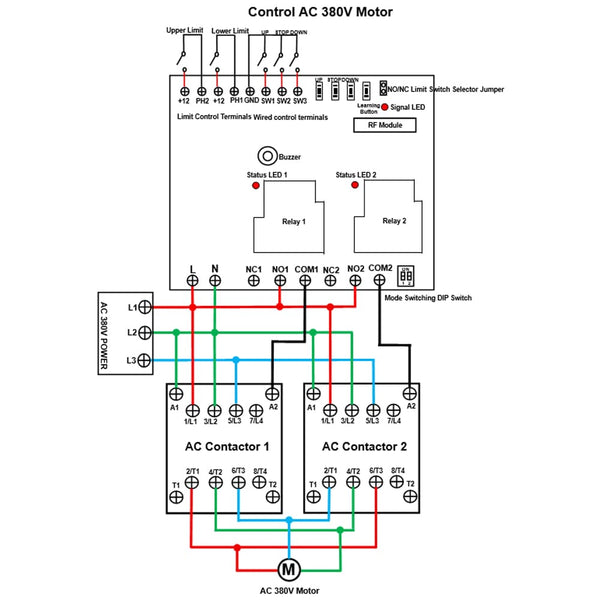

Press button ▼ of the transmitter: The relay 1 is deactivated, and the contactor 1 is connected, the 380V motor rotates in the positive direction.
Press button ■ of the transmitter: The relay 1 is deactivated, and the contactor 1 is disconnected, the 380V motor stops.
Press button ▲ of the transmitter: The relay 2 is activated, and the contactor 2 is connected, the 380V motor rotates in the reversal direction.
Press button ■ of the transmitter: The relay 2 is deactivated, and the contactor 2 is disconnected, the 380V motor stops.
2) Setting Momentary mode: Turn off the dip switch 1 and 2.
Mode Momentary (working with transmitter CG-3 or CB-3-2): Press and hold -> On; Release -> Off.
Press and hold button ▼ of the transmitter: The relay 1 is deactivated, and the contactor 1 is connected, the 380V motor rotates in the positive direction.
Release button ▼: The relay 1 is deactivated, and the contactor 1 is disconnected, the 380V motor stops.
Press and hold button ▲ of the transmitter: The relay 2 is activated, and the contactor 2 is connected, the 380V motor rotates in the reversal direction.
Release button ▲: The relay 2 is deactivated, and the contactor 2 is disconnected, the 380V motor stops.

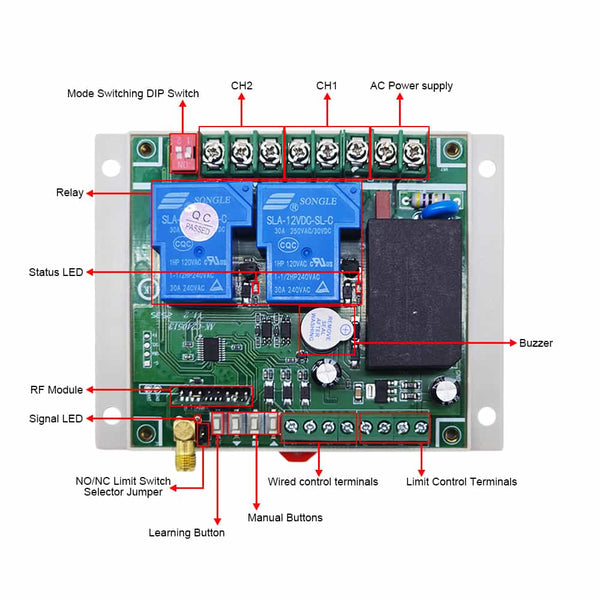

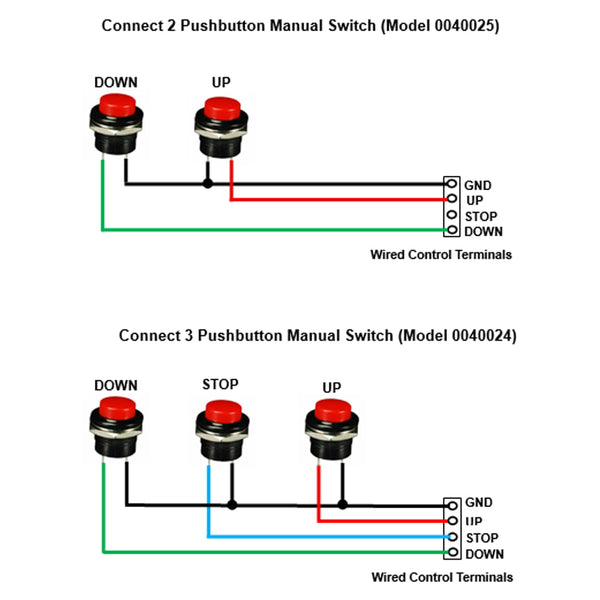

Manual buttons:
Press manual button ▼ of the receiver: The relay 1 is deactivated, and the contactor 1 is connected, the 380V motor rotates in the positive direction.
Press manual button ■ of the receiver: The relay 1 is deactivated, and the contactor 1 is disconnected, the 380V motor stops.
Press manual button ▲ of the receiver: The relay 2 is activated, and the contactor 2 is connected, the 380V motor rotates in the reversal direction.
Press manual button ■ of the receiver: The relay 2 is deactivated, and the contactor 2 is disconnected, the 380V motor stops.
Package Include:
1 x Receiver: S2PU-AC380
1 x Transmitter: CG-3
1 x User manual
