Package Include:

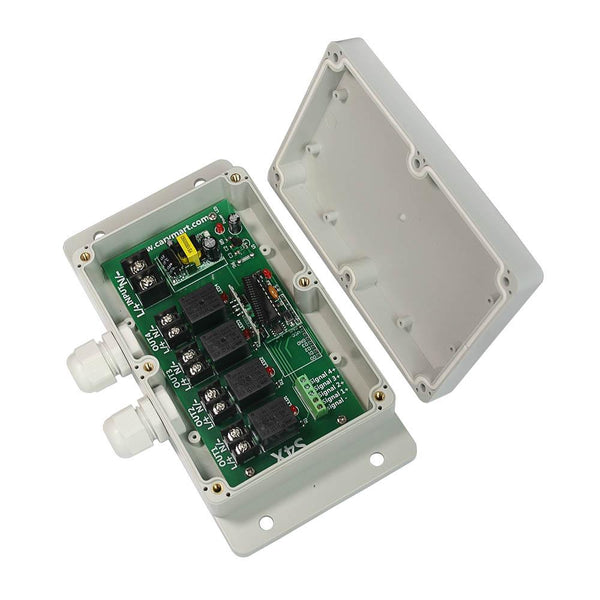

1 x Receiver: S4X-AC-ANT3
1 x Transmitter: CB-4
1 x User manual
Application:
This long range 6000ft single-phase AC 120V 220V 10A wireless remote control switch kit, with 4 way AC input output waterproof radio receiver and RF transmitter.
It can long distance remote control AC devices, such as LED lighting, lamp, motor, fan, pump, solenoid valves, outlets, sockets, electric lock, heater, etc.
Feature:
Wireless remote control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector; it can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model No.: S4X-AC
Operating Voltage: 100~240VAC (110V/120V/220V/240V)
Output Type: 100~240VAC (110V/120V/220V/240V)
Channel: 4 Ways
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Quiescent Current: ≤6mA
Maximum load current per channel: 10A
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 140mm x 73mm x 18mm
Case size: 192mm x 100mm x 45mm
Transmitter Parameters:

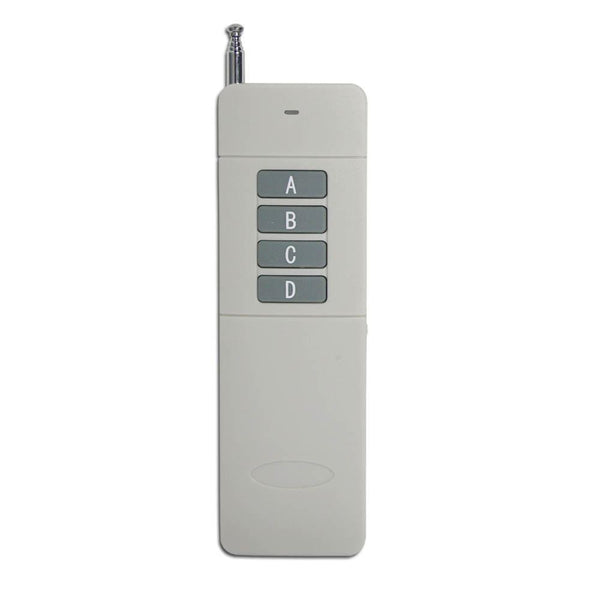

Model No.: 0021026 (CB-4)
Channel/Button: 4
Button Symbol: A, B, C, D
Operating Voltage: 9V (1 x 6F22 -9V battery)
Operating Current: 30mA
Operating Frequency: 433.92MHz
Encoding Chip: PT2262 / PT2264 / SC2262
Transmitting Distance: 1000 meters / 3000ft (theoretically)
It has an on / off button on the side.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
Matching Transmitters:
The receiver can work with different transmitters, such as model C-4 (100 meters), CP-4 (500 meters) CD -4 (1000 meters, waterproof, industrial), or CB -4 (1000 meters).
Working Range:
With a transmitter (such as CB-4) to form a complete set, the maximum working distance can reach 2000 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
Usage:
The receiver can be used to control AC 110~240V equipments.
Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CB-4:

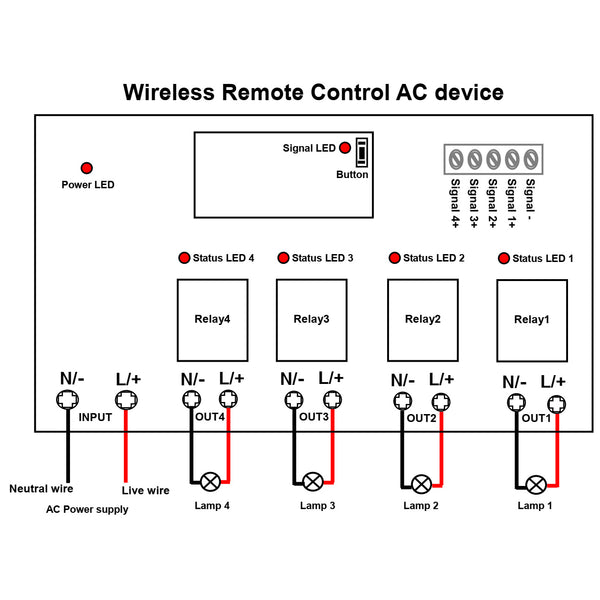

Press and hold the button A on the transmitter: The terminals “OUT1” outputs AC power, and the connected lamp 1 is turned on.
Release the button A: The terminals “OUT1” stops outputting, and the connected lamp 1 is turned off.
Press and hold the button B on the transmitter: The terminals “OUT2” outputs AC power, and the connected lamp 2 is turned on.
Release the button B: The terminals “OUT2” stops outputting, and the connected lamp 2 is turned off.
Press and hold the button C on the transmitter: The terminals “OUT3” outputs AC power, and the connected lamp 3 is turned on.
Release the button C: The terminals “OUT3” stops outputting, and the connected lamp 3 is turned off.
Press and hold the button D on the transmitter: The terminals “OUT4” outputs AC power, and the connected lamp 4 is turned on.
Release the button D: The terminals “OUT4” stops outputting, and the connected lamp 4 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CB-4:
Press the button A on the transmitter: The terminals “OUT1” outputs AC power, and the connected lamp 1 is turned on.
Press the button A again: The terminals “OUT1” stops outputting, and the connected lamp 1 is turned off.
Press the button B on the transmitter: The terminals “OUT2” outputs AC power, and the connected lamp 2 is turned on.
Press the button B again: The terminals “OUT2” stops outputting, and the connected lamp 2 is turned off.
Press the button C on the transmitter: The terminals “OUT3” outputs AC power, and the connected lamp 3 is turned on.
Press the button C again: The terminals “OUT3” stops outputting, and the connected lamp 3 is turned off.
Press the button D on the transmitter: The terminals “OUT4” outputs AC power, and the connected lamp 4 is turned on.
Press the button D again: The terminals “OUT4” stops outputting, and the connected lamp 4 is turned off.
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter CB-4:
Press the button A on the transmitter: The terminals “OUT1” outputs AC power, and the connected lamp 1 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
Press the button B on the transmitter: The terminals “OUT2” outputs AC power, and the connected lamp 2 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
Press the button C on the transmitter: The terminals “OUT3” outputs AC power, and the connected lamp 3 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
Press the button D on the transmitter: The terminals “OUT4” outputs AC power, and the connected lamp 4 is turned on. Other 3 terminals stop outputting, and other 3 connected lamps are turned off.
How to pair the transmitter to the receiver:
1) Press the learning button once in the receiver, signal LED on the receiver flashes one time and then stays on, this indicates that the receiver enters the learning status.
2) Press button A on transmitter, if the signal LED flashes one time, this indicates that the pairing with button A is successful.
Then press button B on transmitter, if the signal LED flashes one time, this indicates that the pairing with button B is successful.
Then press button C on transmitter, if the signal LED flashes one time, this indicates that the pairing with button C is successful.
Then press button D on transmitter, if the signal LED flashes one time, this indicates that the pairing with button D is successful.
3) Press the learning button in the receiver again for 1-2 seconds, signal LED turns off, this indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
If you don’t want the receiver to work with the transmitter, you can delete all transmitters codes stored in the receiver.
Operation: Press the learning button in the receiver 10 times and then release the learning button, signal LED flashes 10 times quickly and then goes off, this indicates that all stored codes have been deleted successfully.
