Application:
Wireless Linear Actuator Remote Control Switch can be used for cars, lifting platforms, massage couches, electric beds, medical chairs, Kitchen appliance lifts,TV Lifts,electric lift desk, electric devices, micro-devices and so on. It can push, pull, lift and descend other devices.
Features:
Wireless remote control, easy to install.

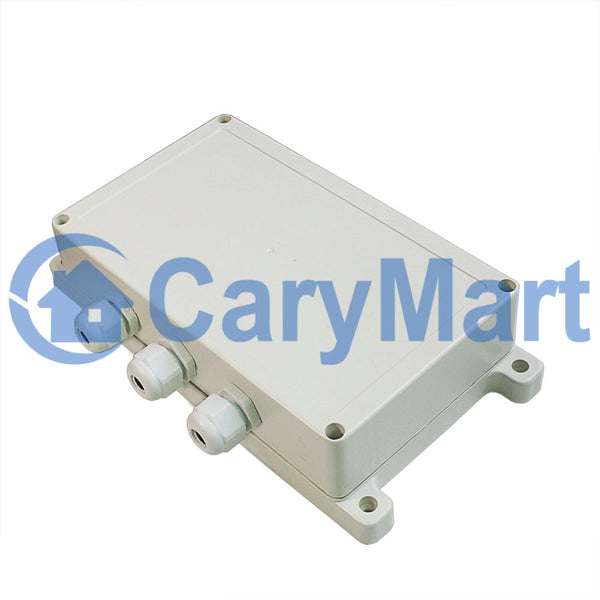

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Two operating voltage versions: DC 12V, 24V optional.
High Power: Each channel can work at maximum current 30A.
You can remote control two electric linear actuators extension and retraction with the transmitter from any place within a reliable distance.
With reverse power protection and over current protection.
With limit control terminals: You can connect limit switches or sensors to restrict Linear Actuator Stroke.
The RF wireless signal can pass through walls, floors and doors.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:
Model No: S2PF-DC
Operating Voltage: 12±1VDC (model S2PF-DC12), or 24±2VDC (model S2PF-DC24), the operating voltage must be specified when ordering.
Output: DC12V (S2PF-DC12), DC24V (S2PF-DC24)
Control Mode: Momentary and Interlocking
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Wire range for the terminals: 22-12 AWG
Channel: 2 CH, can work with 2 electric linear actuators
Maximum Working Current: 30A / each channel, so motor's maximum starting current can not exceed 30A.
Operating Temperature: -20 ° C to +70 ° C

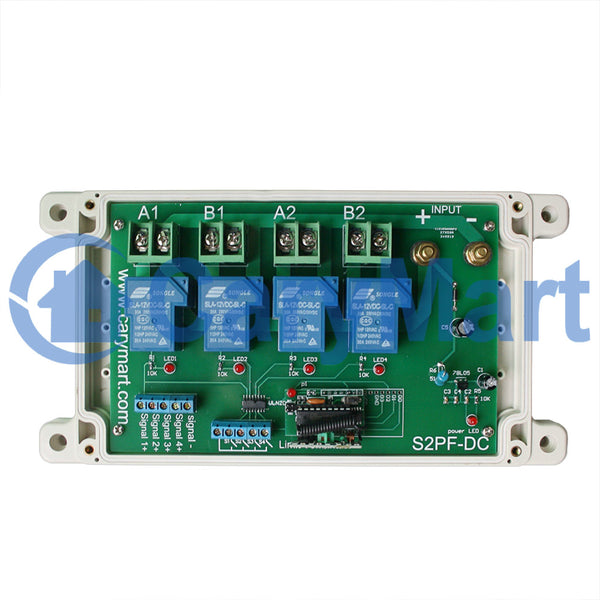

PCB size: 170 x 100 x 18mm (6.7x 4.0 x 0.7 inches)
Case size: 200 x 120 x 53 mm (7.9x 4.0 x 2.0 inches)
Matching Transmitters:
This receiver can work with different transmitters. Such as model CV-6-2(500M), or CB-6 (1000M) etc.
Working Range:
With a transmitter (such as CV-6-2) to form a complete set, the maximum working distance can reach 500M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as transmitter CB-6.
Usage:
Setting different control modes:
1) Setting Interlocking mode: Do not connect Jumper-1 (CN1) or Jumper-2 (CN2)
Mode Interlocking (working with transmitter CV-6-2):
Press button ▲ on the left: The electric linear actuator 1 extends.
Press button ▼ on the left: The electric linear actuator 1 retracts.
Press button ■ on the left: The electric linear actuator 1 stops.
Press button ▲ on the right: The electric linear actuator 2 extends.
Press button ▼ on the right: The electric linear actuator 2 retracts.
Press button ■ on the right: The electric linear actuator 2 stops.
2) Setting Momentary mode: Only connect Jumper-1 (CN1)
Mode Momentary (working with transmitter CV-6-2):
Press and hold button ▲ on the left: The electric linear actuator 1 extends. Release button ▲ on the left: The electric linear actuator 1 stops.
Press and hold button▼ on the left: The electric linear actuator 1 retracts. Release button ▼ on the left: The electric linear actuator 1 stops.
Press and hold button ▲ on the right: The electric linear actuator 2 extends. Release button▲ on the right: The electric linear actuator 2 stops.
Press and hold button▼ on the right: The electric linear actuator 2 retracts. Release button ▼ on the right: The electric linear actuator 2 stops.

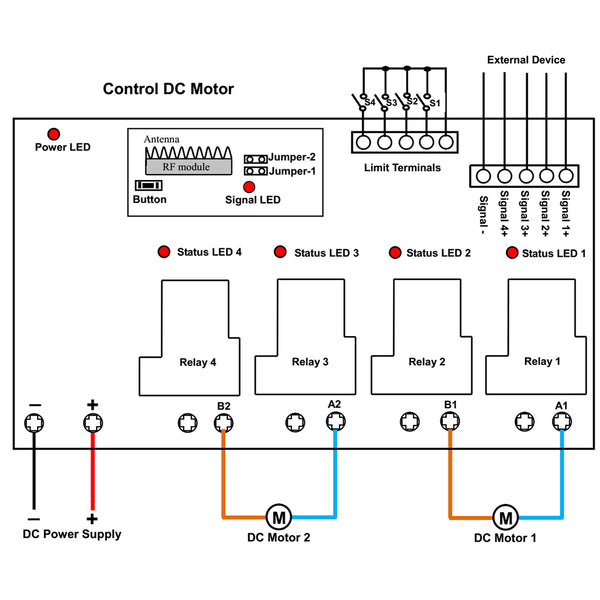

Limit control terminals:
Limit control terminals S1, S2, S3 and S4 are normally open, you can connect limit switches or sensors (normally open type) to terminals S1, S2, S3 and S4, and then you can use limit switches or sensors to restrict Linear Actuator Stroke.
When the electric linear actuator 1 extends, if the actuator collides with the external limit switch 1, the electric linear actuator 1 will stop automatically.
When the electric linear actuator 1 retracts, if the actuator collides with the external limit switch 2, the electric linear actuator 1 will stop automatically.
When the electric linear actuator 2 extends, if the actuator collides with the external limit switch 3, the electric linear actuator 2 will stop automatically.
When the electric linear actuator 2 retracts, if the actuator collides with the external limit switch 4, the electric linear actuator 2 will stop automatically.
Package Include:
1 x Receiver: S2PF-DC
1 x User manual
