Note: This product does not include a remote control/transmitter, if you need it, please click the link of the remote control/transmitter in the description below to buy.
Application:Wireless DC Motor Remote Control Switch can be used in rolling blinds, rolling doors, projection screens, awnings, conveyors or other appliances and equipments with DC motors, it can remote control DC motor positive rotation or reverse rotation.
Features:
Wireless remote control, easy to install.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
You can remote control DC motor positive rotation, reverse rotation or stop rotation with the transmitter from any place within a reliable distance.
You also can control DC motor positive rotation, reverse rotation or stop rotation by button on the receiver.
With reverse power protection and over current protection.
The RF wireless signal can pass through walls, floors and doors.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:
Model No: S1FU-DC
Operating Voltage: 6VDC (model S1FU-DC06), or 9±1VDC (model S1FU-DC09), or 12±1VDC (model S1FU-DC12), or 24±2VDC (model S1FU-DC24), the operating voltage must be specified when ordering.
Control Mode: Momentary and Interlocking
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Wire range for the terminals: 22-14 AWG
Channel: 1 CH, can work with 1 DC motor
Maximum Working Current: 10A / each channel, so motor's maximum starting current can not exceed 10A.
Operating Temperature: -20 ° C to +70 ° C
PCB size: 67mm x 50mm x 18mm

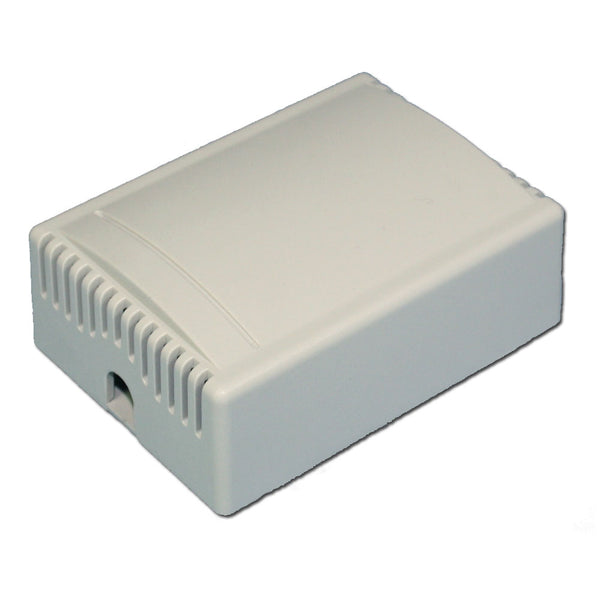

Case size: 75mm x 54mm x 27mm
Matching Transmitters:
This radio receiver can work with different RF transmitters.
When you set the receiver in momentary mode, it should work with two button transmitters, such as model C-2-2 (100 Meter), CV-2-2 (500 Meter), or CB-2 (1000 Meter) etc.
When you set the receiver in Interlocking mode, it should work with three/four button transmitters, such as model C-3-2 (100 Meter), CV-4-2 (500 Meter), or CB-3-2 (1000 Meter)
etc.
Working Range:
With a transmitter (such as C-3-2) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as transmitter CB-3-2.
Setting different control modes:

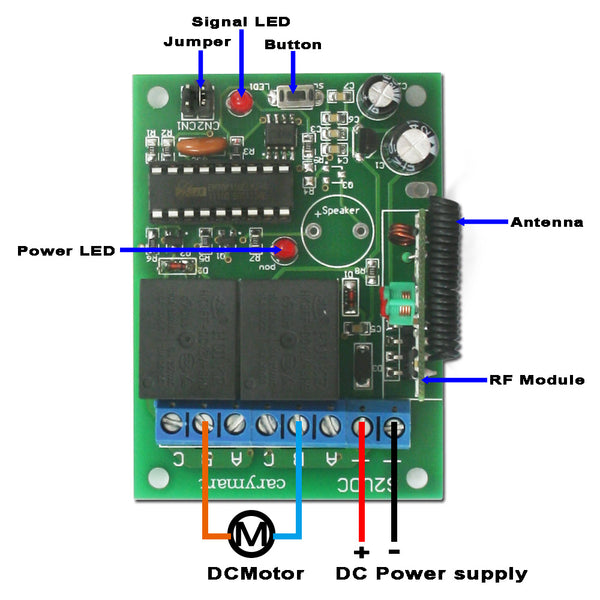

1) Setting Interlocking mode: Disconnect Jumper-1 and Jumper-2.
Mode Interlocking (working with transmitter C-3-2):
Press button ▲ of transmitter: Motor rotates in positive direction.
Press button ▼ of transmitter: Motor rotates in reversal direction.
Press button ■ of transmitter: Motor stops.
2) Setting Momentary mode: Only connect Jumper-1
Mode Momentary (working with transmitter C-3-2):
Press and hold button ▲ of transmitter: Motor rotates in positive direction. Release button ▲ of transmitter: Motor stops.
Press and hold button ▼ of transmitter: Motor rotates in reversal direction. Release button ▼ of transmitter: Motor stops
Package Include:
1 x Receiver: S1FU-DC
1 x User manual
