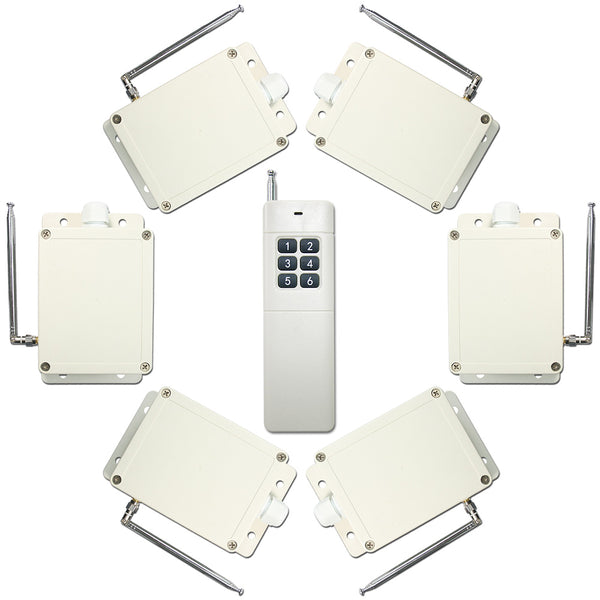

Package Include:
6 x Receiver: S1U-AC-ANT3
1 x Transmitter: CV-6
1 x User manual
Application:
This Long distance AC 110V 220V 10A remote control switch kit with 1 six buttons wireless RF transmitter and six 1 channel dry relay output radio receiver.
This kit can long range remote control DC and AC equipments, such as light, lamp, electric locks, motor, pump, fans, solenoid valves, etc.
Feature:
Wireless control, easy to install.

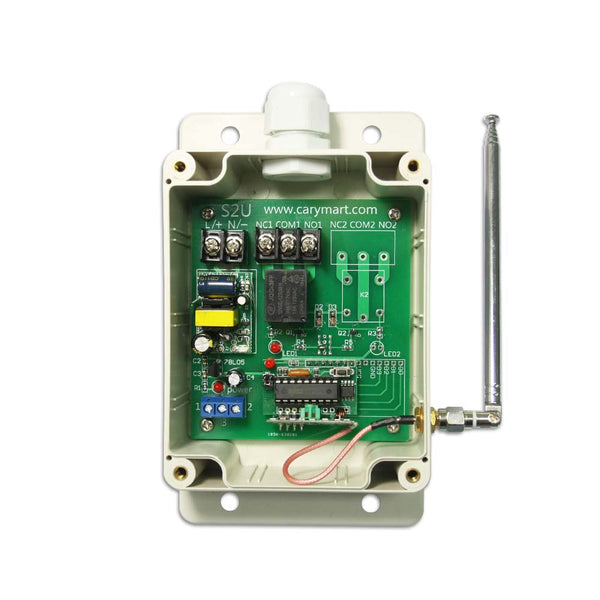

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.

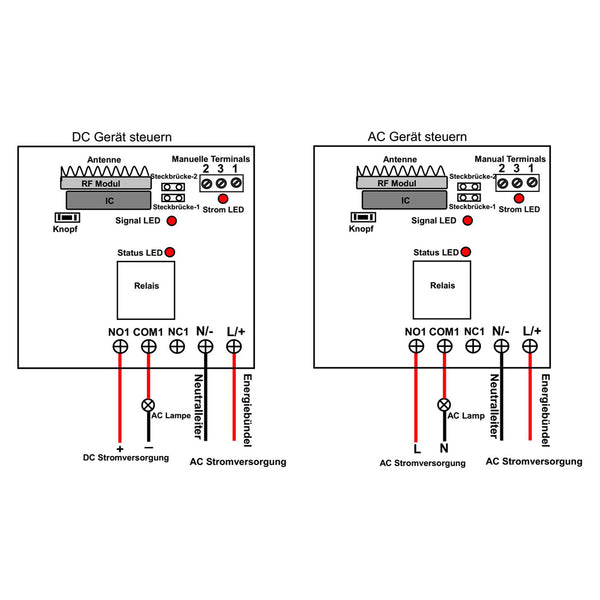

Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.

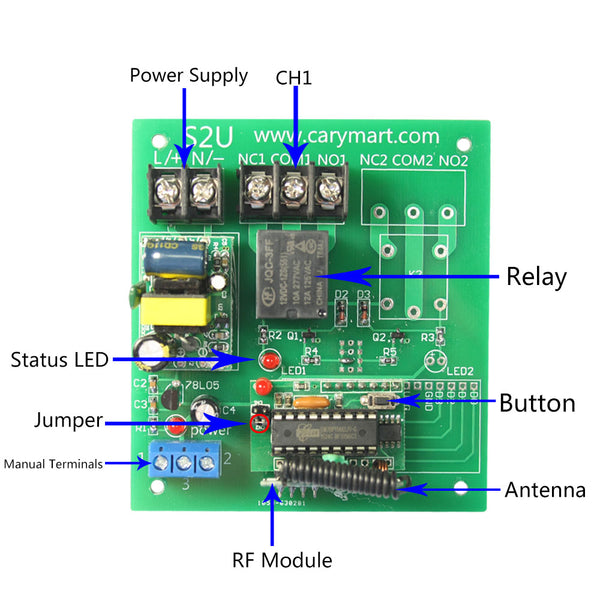

Receiver Parameters:
Model No.: S1U-AC-ANT3
Operating Voltage: AC100~240V (110V/120V/220V/240V)
Output Type: Dry Relays Output (Normally Open and Normally Closed)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 10A / each channel
Channel: 1 CH
Quiescent Current: ≤6mA
2 Selectable Modes: Self-locking, Momentary
Wire Range of Terminals: 22-12 AWG
Working Frequency: 433.92 MHz
Operating Temperature: -20°C ~ +70°C
PCB size: 88mm x 80mm x 18mm
Case size: 115mm x 90mm x 55mm

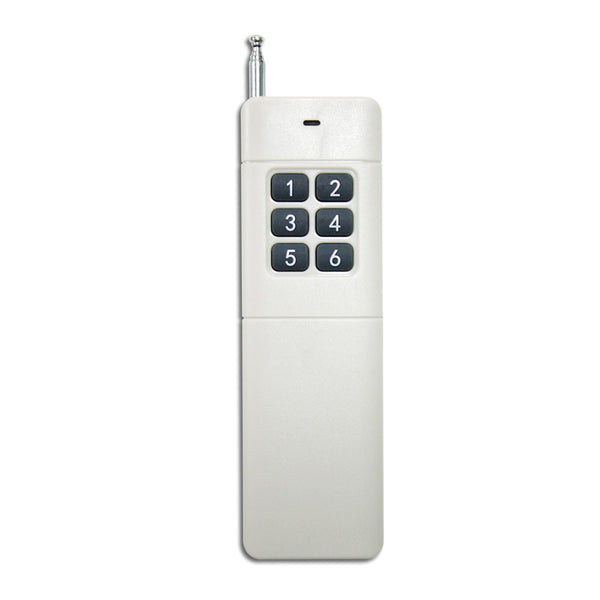

Transmitter Parameters:
Model No.: 0021019 (CV-6)
Channel/Button: 6
Button Symbol: 1, 2, 3, 4, 5, 6
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 15mA
Operating Frequency: 433MHz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm
Matching Transmitters:

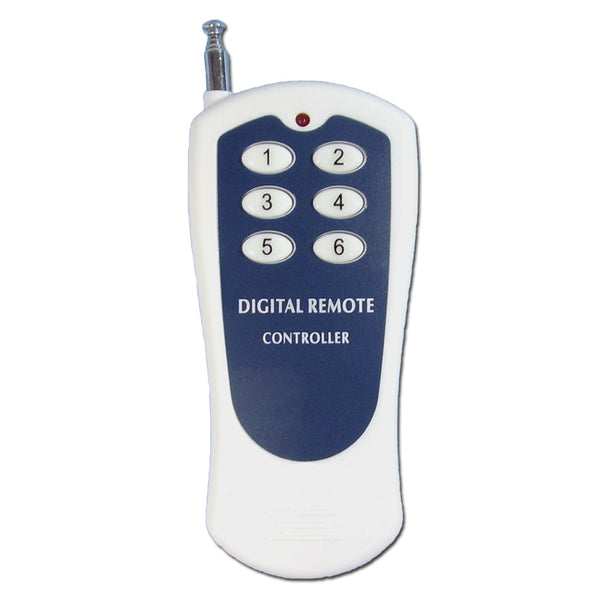

The receiver can work with different transmitters, such as model CV-6 (500 Meter / 1500 feet range) or CB-6 (1000 Meter / 3000 feet range).
Working Range:
With a transmitter (such as CV-6) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can replace external antenna of the receiver or use a high-power transmitter, such as CB-6 transmitter.
Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CV-6:
Press and hold the button 1 on the transmitter: The relay in the receiver 1 is activated, and the connected lamp is turned on.
Release the button 1: The relay in the receiver 1 is deactivated, and the connected lamp is turned off.
Press and hold the button 2 on the transmitter: The relay in the receiver 2 is activated, and the connected lamp is turned on.
Release the button 2: The relay in the receiver 2 is deactivated, and the connected lamp is turned off.
...
Press and hold the button 6 on the transmitter: The relay in the receiver 6 is activated, and the connected lamp is turned on.
Release the button 6: The relay in the receiver 6 is deactivated, and the connected lamp is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CV-6:
Press the button 1 on the transmitter: The relay in the receiver 1 is activated, and the connected lamp is turned on.
Press the button 1 again: The relay in the receiver 1 is deactivated, and the connected lamp is turned off.
Press the button 2 on the transmitter: The relay in the receiver 2 is activated, and the connected lamp is turned on.
Press the button 2 again: The relay in the receiver 2 is deactivated, and the connected lamp is turned off.
...
Press the button 6 on the transmitter: The relay in the receiver 6 is activated, and the connected lamp is turned on.
Press the button 6 again: The relay in the receiver 6 is deactivated, and the connected lamp is turned off.
