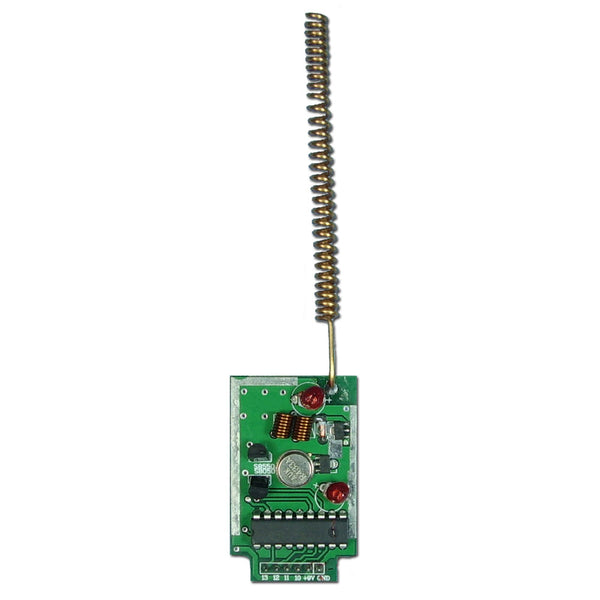

Parameters:
Model No.: 0021038 (TB-05)
Working Voltage: DC 9V
Working Current: 250mA
RF Sensitivity: -107dBm
Transmitting Distance: 3000m / 9000ft (in open field)
Transmitting Power: 26dBm (400mW)
Modulation Method: Amplitude modulation (ASK or OOK)
Encoding Mode: Fixed code by Soldering
Working Temperature: -20°C ~ +70°C
Frequency: 433MHz
Reliable Control: Use an 8-bit code (Encoding).
Wide working voltage range, large transmitting power and long transmission distance
Dimensions: 49mm x 31mm x 8mm

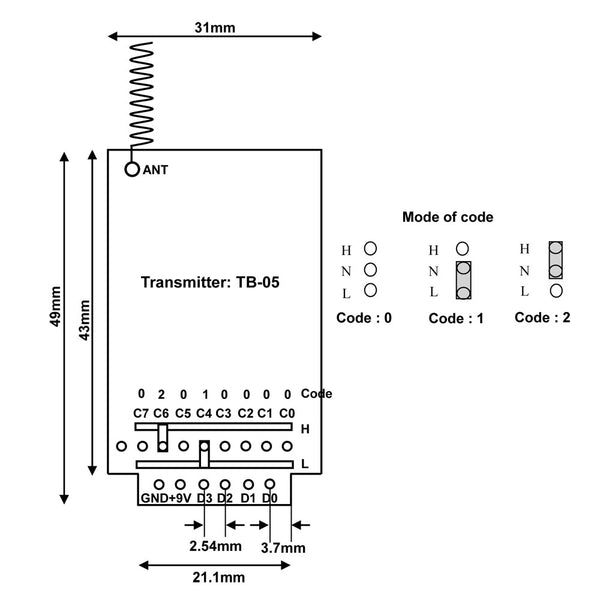

| Pin | Function |
| D0 | data pin |
| D1 | data pin |
| D2 | data pin |
| D3 | data pin |
| +9V | positive power supply |
| GND | negative power supply |
Operation:
1. Connect the positive pole of the DC 9V power supply to the "+9V" pin of the transmitter module.
2. Connect the negative pole of the DC 9V power supply to the "GND" pin of the transmitter module.
3. Connect any data pin of the transmitter module's "D0" ~ "D3" pin to the "+9V" pin. Then it will transmit the corresponding signal.
