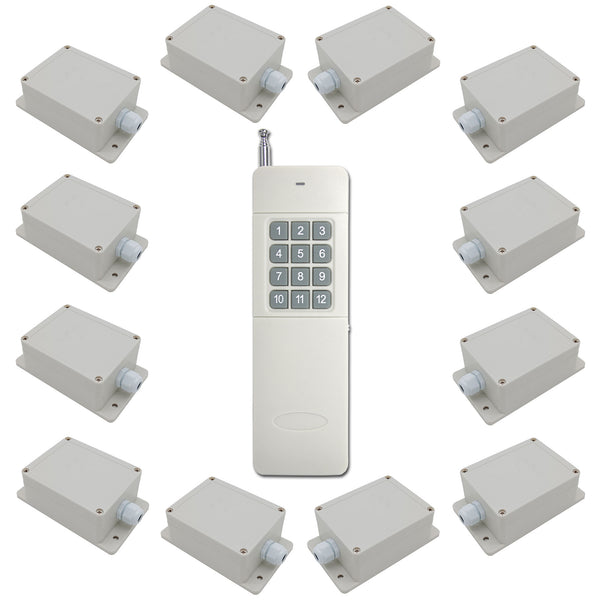

Package Include:
12 x Receiver: S1XB-AC
1 x Transmitter: CV-12
1 x User manual
Application:
This is a long distance 120V 220V wireless remote control switch kit, with twelve waterproof 1 channel AC power input output radio receivers and one RF transmitter with 12 buttons.
This kit can long range remote control AC electrical equipments, such as lamp, lights, LED lighting, motor, fan, pump, solenoid valves, etc.
Feature:
Wireless remote control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model No.: S1XB-AC
Operating Voltage: 100~240VAC (110V/120V/220V/240V)
Output Type: 100~240VAC (110V/120V/220V/240V)
Channel: 1 Way
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 10A
2 Control modes: Self-locking and Momentary
Working Frequency: 433.92 MHz
Wire Range of Terminals: 22-12AWG
Operating Temperature: -20°C ~ +70°C
PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)

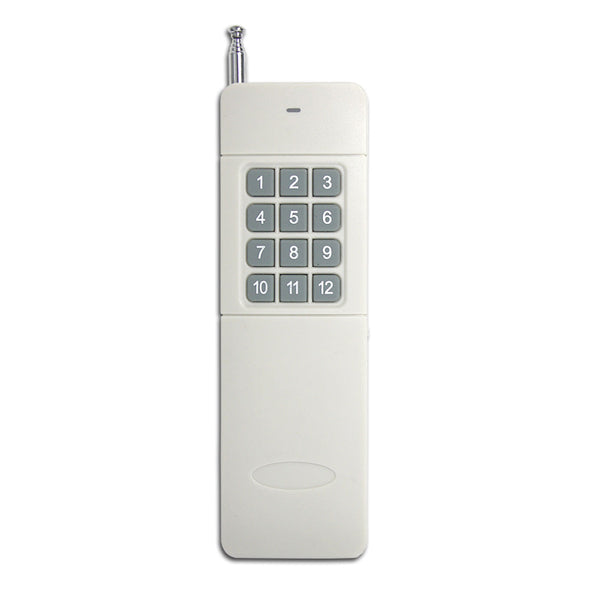

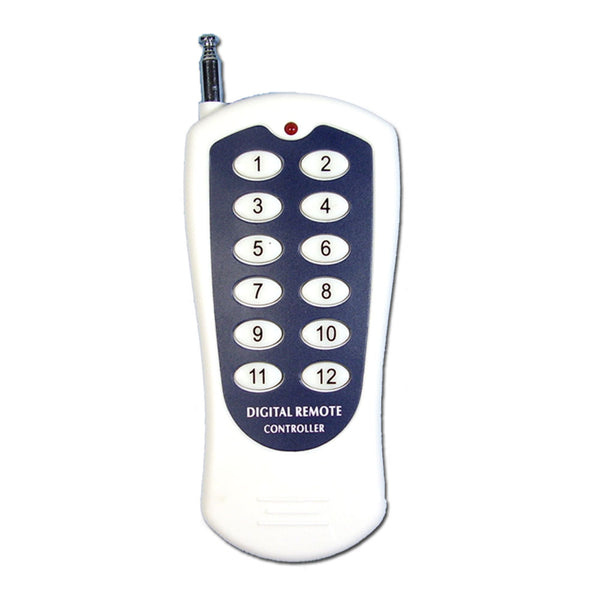

Transmitter Parameters:
Model No.: 0021022 (CV-12)
Channel/Button: 12
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433MHz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm
Matching Transmitters:
The receiver can work with different transmitters, such as model CV-12 (500 Meter / 1500 feet range) or CB-12 (1000 Meter / 3000 feet range).
Working Range:
With a transmitter (such as CV-12) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-12 transmitter.
Usage:
The receiver can be used to control AC 110~240V equipments.
Setting different control modes:
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CV-12:
Press and hold the button 1 on the transmitter: The terminal "OUT1" of the receiver 1 outputs AC power, and the connected lamp 1 is turned on.
Release the button 1: The terminal "OUT1" of the receiver 1 stops outputting, and the connected lamp 1 is turned off.
Press and hold the button 2 on the transmitter: The terminal "OUT1" of the receiver 2 outputs AC power, and the connected lamp 2 is turned on.
Release the button 2: The terminal "OUT1" of the receiver 2 stops outputting, and the connected lamp 2 is turned off.
...
Press and hold the button 12 on the transmitter: The terminal "OUT1" of the receiver 12 outputs AC power, and the connected lamp 12 is turned on.
Release the button 12: The terminal "OUT1" of the receiver 12 stops outputting, and the connected lamp 12 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CV-12:
Press the button 1 on the transmitter: The terminal <OUT1> of the receiver 1 outputs AC power, and the connected lamp 1 is turned on.
Press the button 1 again: The terminal <OUT1> of the receiver 1 stops outputting, and the connected lamp 1 is turned off.
Press the button 2 on the transmitter: The terminal <OUT1> of the receiver 2 outputs AC power, and the connected lamp 2 is turned on.
Press the button 2 again: The terminal <OUT1> of the receiver 2 stops outputting, and the connected lamp 2 is turned off.
...
Press the button 12 on the transmitter: The terminal <OUT1> of the receiver 12 outputs AC power, and the connected lamp 12 is turned on.
Press the button 12 again: The terminal <OUT1> of the receiver 12 stops outputting, and the connected lamp 12 is turned off.
