Package Include:

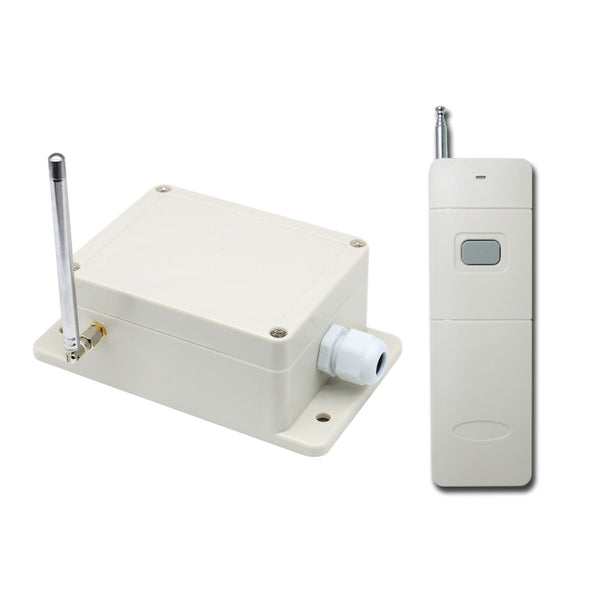

1 x Receiver: S1PXW-AC-ANT3
1 x Transmitter: CC-1/CCW-1/CC-2/CCW-2
1 x User manual
Application:
This long distance 5000 meters 120V 220V 30A wireless remote control switch kit with 1 channel AC power input output Waterproof radio receiver and RF transmitter.
This kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long range remote control AC electric equipments, such as remote control lights, lamp, fans, pump, locks, motors, solenoid valves, etc.
Feature:
Wireless control, easy to install.
Super long working range: With the transmitter forming a complete set, the maximum working distance may reach 5000 meters in an open area.

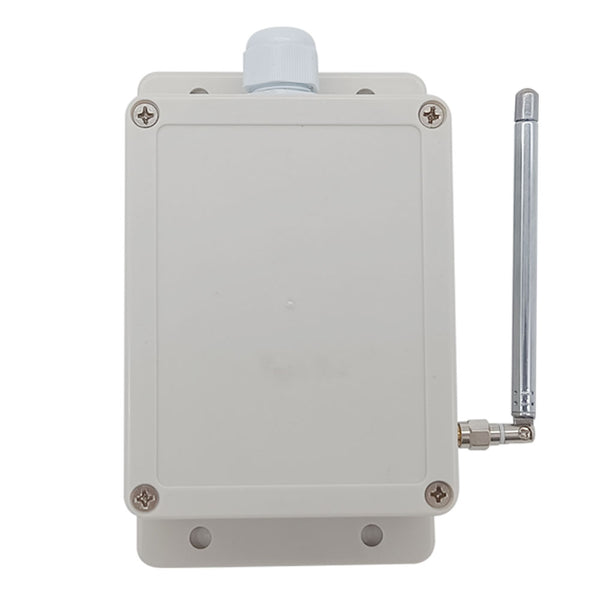

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (100V~120V) used in US, Canada, etc, and 220V AC (200V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
High Power: Each channel can work at maximum load current 30A.
With wired control terminals: You can connect sensors, limit switches, manual switches or external devices to control the receiver.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Feedback Function:
The receiver and the transmitter have a Two-way working mode, so the user can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the signal from the transmitter, it will immediately transmit a feedback signal to the transmitter, then the transmitter will send out a buzzing sound to inform you that the receiver has been successfully triggered.
Receiver Parameters:
Model No.: S1PXW-AC
Operating Voltage: 100~240VAC (110V/120V/220V/240V)
Output Type: 100~240VAC (110V/120V/220V/240V)
Channel: 1 Way
3 Control Modes: Self-locking, Momentary, Interlocking
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 30A / each channel
Wire Range of Terminals: 22-12AWG
Working Frequency: 433.92 MHz
Operating Temperature: -20°C ~ +70°C

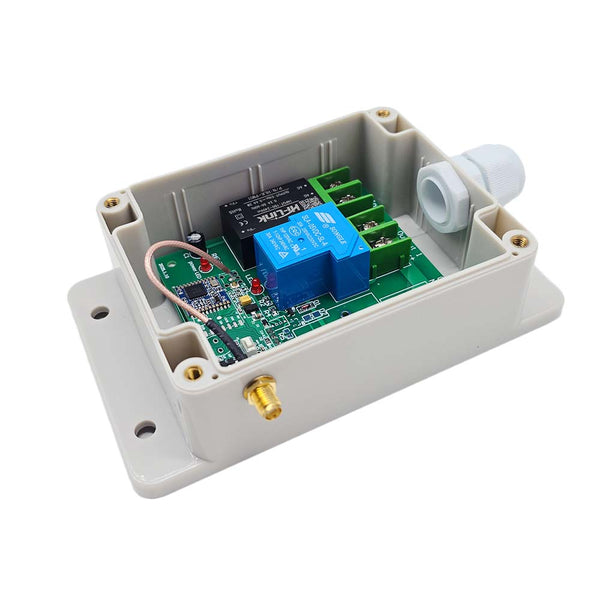

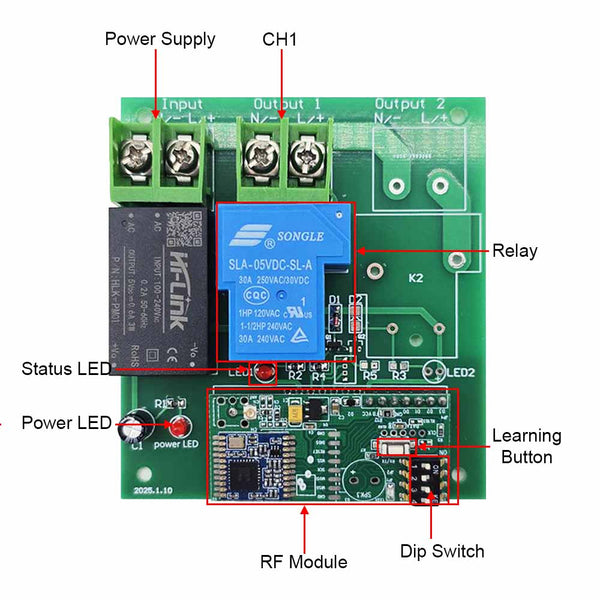

PCB size: 140 x 73 x 18 mm (5.5 x 2.9 x 0.7 inches)

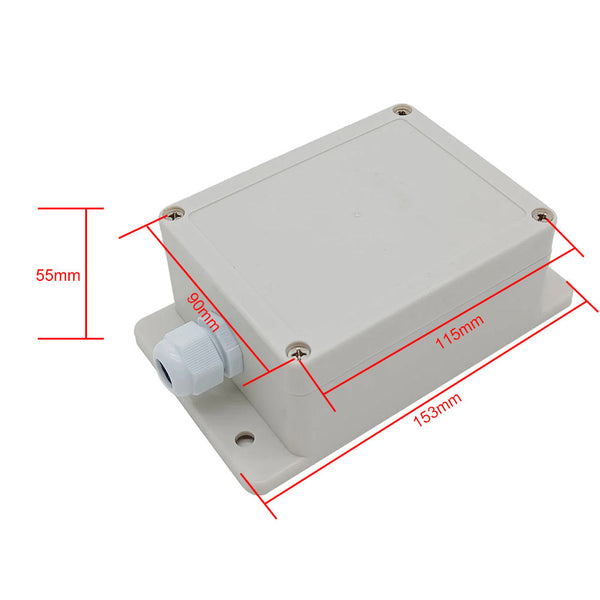

Case size: 192 x 100 x 45 mm (7.6 x 4.0 x 1.8 inches)
Transmitter Parameters:
Model: 0021060 (CC-1) / 0021061 (CC-2)
Channel / Button: 1 (CC-1) / 2 (CC-2)
Button Symbol: No Symbol (CC-1) / A, B (CC-2)

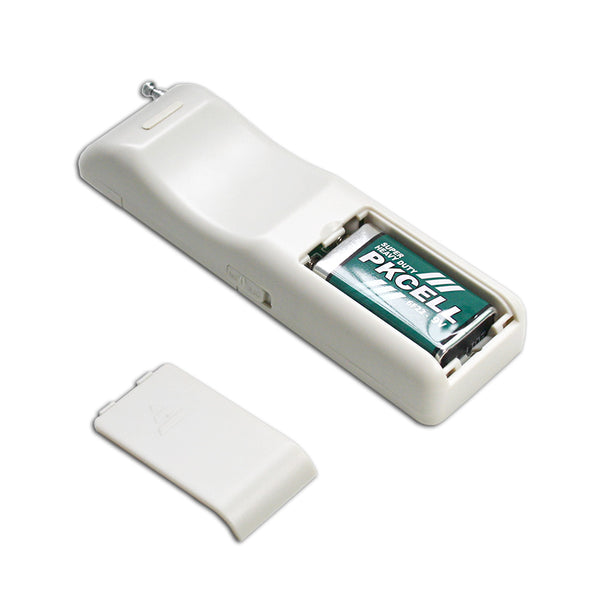

Operating Voltage: 9V (1 x 6F22-9V battery, can be used for 12 months)
Quiescent Current: 5μA
Working Current: 65mA (when the transmitter is transmitting the signal), 16mA( when the transmitter is receiving the signal).
Operating Frequency: 433.92 MHz
Modulation Mode: FSK + LORA
Feedback indication: buzzing sound
Transmitting Distance: 5000 meters / 15000 feet (theoretically)
With power switch on the side.
Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
Matching Transmitters:
This receiver only works with 5000m transmitters.

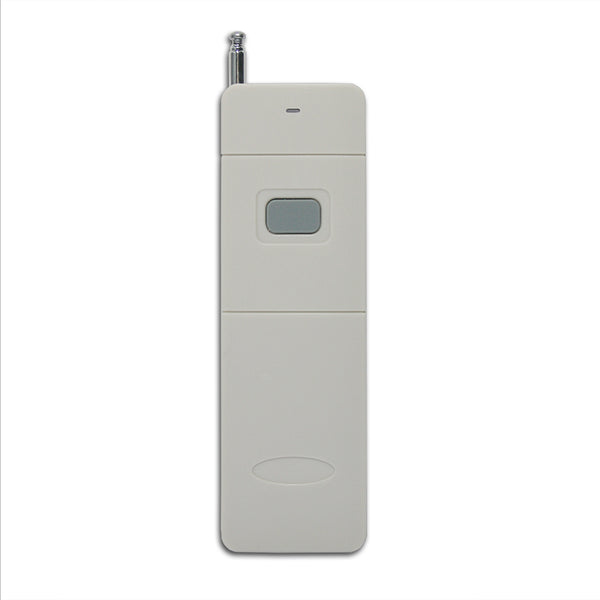

When you set the receiver in Self-locking mode or Momentary mode, it should work with single button transmitter, such as model CC-1 (5000 meters/15000 ft range) or CCW-1 (waterproof, 5000 meters/15000 ft range).

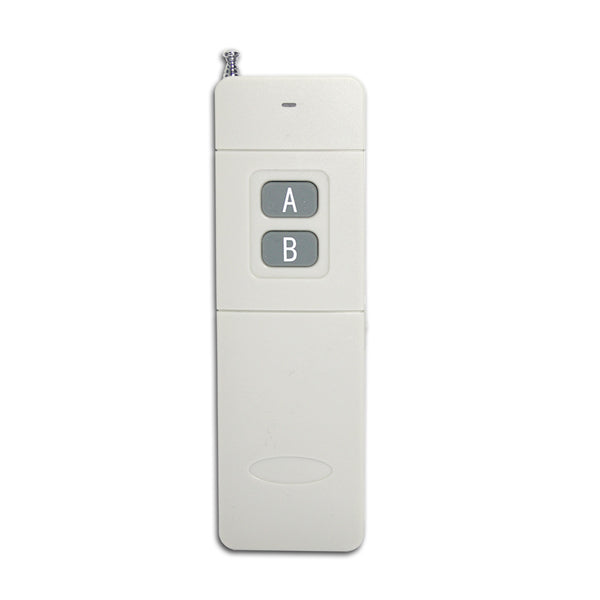

When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model CC-2 (5000 meters/15000 ft range), or CCW-2 (waterproof, 5000 meters/15000 ft range).
Working Range:
With the transmitter (such as CC-2) forming a complete set, the maximum working distance may reach 5000 meters in an open area.
The maximum working distance is based on theoretical data which would be without barriers and without any RF interference. In practice, it will be hindered by trees, walls or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
Setting different control modes:

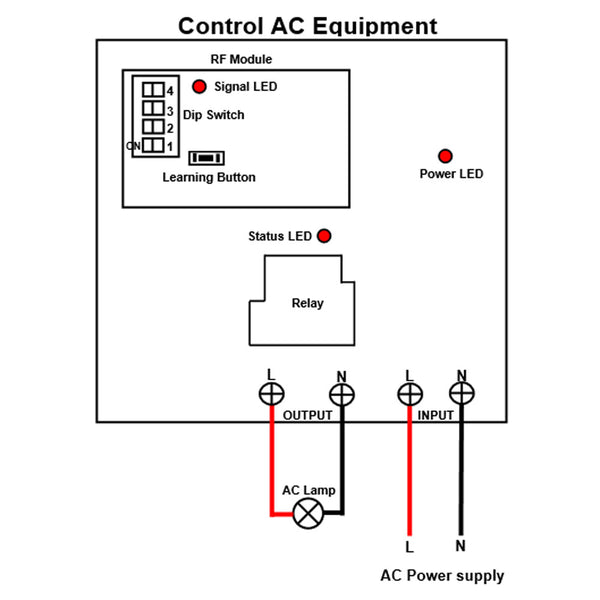

1) Setting Self-locking mode (work with the transmitter CC-1): Turn on the third bit of the dip switch.
Press the button on the transmitter: The terminals A and B of OUTPUT outputs AC power, and the connected lamp is turned on.
Press the button again: The terminal A and B of OUTPUT stop outputting, and the connected lamp is turned off.
2) Setting Momentary mode (work with the transmitter CC-1): Turn off the second bit and the third bit of the dip switch.
Press and hold the button on the transmitter: The terminals A and B of OUTPUT outputs AC power, and the connected lamp is turned on.
Release the button: The terminal A and B of OUTPUT stop outputting, and the connected lamp is turned off.
3) Setting Interlocking mode (work with the transmitter CC-2): Turn on the second bit of the dip switch.
Press the button A on the transmitter: The terminals A and B of OUTPUT outputs AC power, and the connected lamp is turned on.
Press the button B on the transmitter: Terminals A and B of OUTPUT stop outputting, and connected lamp are turned off.
Wired control terminals:
The receiver has wired control terminals, and you can connect external devices, sensors, or manual switches to these terminals, then use them to control the receiver.
1) By low level signal:
You can connect the external devices (with low level output signal) to the terminals 2 and 3; then use the external devices to control the receiver.
When external device outputs low level signal to terminals 2 (Signal +) and terminal 3 (Signal -), terminals A and B of OUTPUT outputs AC power, and the lamp is turned on.
When the external device stops to output signal, Terminals A and B of OUTPUT stop outputting, the lamp is turned off.
2) By NO/NC contact:
You can connect the manual switches (with NO/NC contact) to the terminals 2 and 3; then use the manual switches to control the receiver.
When connect terminals 2 and 3 by manual switch, Terminals A and B of OUTPUT outputs AC power, the lamp is turned on.
When disconnect terminals 2 and 3 by manual switch, Terminals A and B of OUTPUT stop outputting, the lamp is turned off.
