Package Include:
4 x Receiver: S1RU-DC
1 x Transmitter: CP-4
1 x User manual
Application:
This small DC 6V 9V 12V 24V wireless remote control switch kit with one 4 buttons RF transmitter and four 1 way 10A relay output radio receivers.
It can long range remote control DC and AC equipments, such as LED lighting, lamp, motor, pump, fans, solenoid valves, electric lock, etc.
Feature:
Wireless control, easy to install.
Power Supply: Four working voltage versions, DC 6V, 9V, 12V, 24V.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model No.: S1RU-DC06 / S1RU-DC09 / S1RU-DC12 / S1RU-DC24
Power Supply (Operating Voltage): DC6V (S1RU-DC06), DC9V±1V (S1RU-DC09), DC12V±1V (S1RU-DC12), DC24V±2V (S1RU-DC24)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-14 AWG
Working Frequency: 433MHz
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Working Current: 10A
Operating Temperature: -20 ° C to +70 ° C
PCB size: 44 x 37 x 19 mm
Case size: 55 x 45 x 28 mm

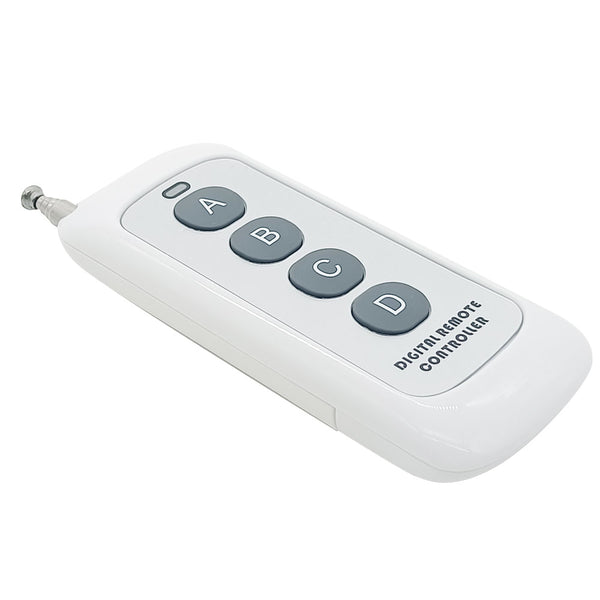

Transmitter Parameters:
Model No.: 0021012 (CP-4)
Channel/Button: 4
Button Symbol: A, B, C, D

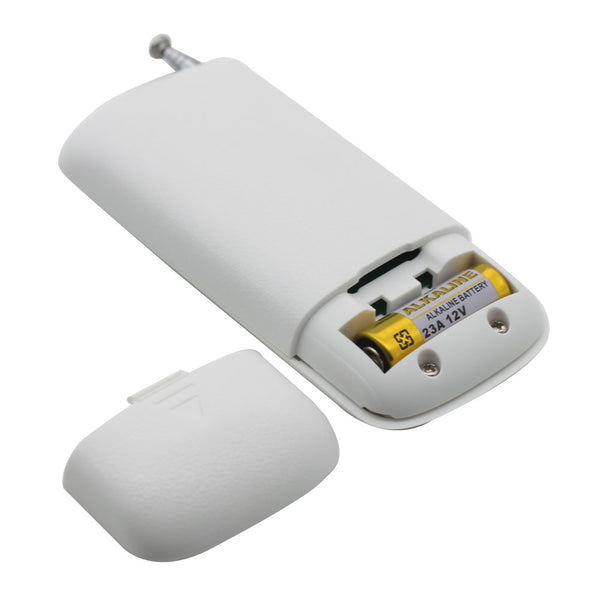

Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 8mA
Operating Frequency: 433MHz

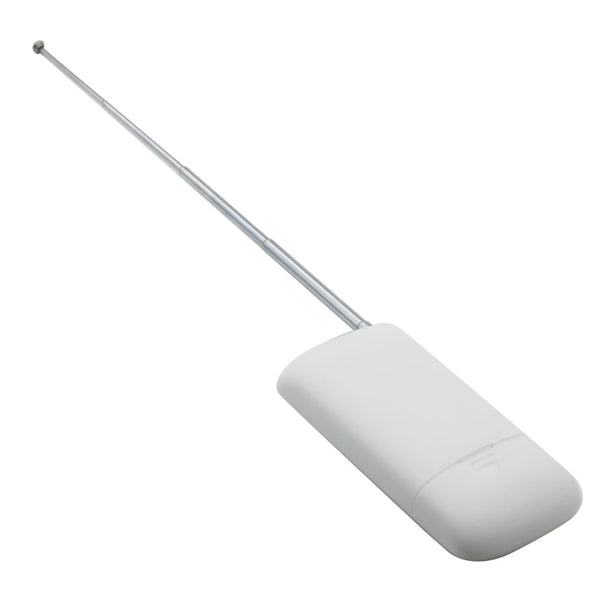

Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 90 x 40 x 14 mm
Matching Transmitters:
The receiver can work with different transmitters, such as model C-4 (100 meters), CP-4 (500 meters) and CB-4 (1000 meters).
Working Range:
With a transmitter (such as CP-4) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-4 transmitter.
Usage:
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.
Notice: The receiver is dry relay output, not DC/AC power output. Initial state of relay output terminals: Terminals K and G are Normally Open; Terminals G and B are Normally Closed.
Wiring:
I) If you want to control a DC lamp, do as following:
1) Connect the positive pole of DC power supply to terminal "VCC" of the receiver;
2) Connect the negative pole of DC power supply to terminal "GND" of the receiver;
3) Connect the positive pole of DC power supply to terminal "K" of the receiver;
4) Connect the negative pole of DC power supply to terminal the negative pole of DC lamp;
5) Connect the positive pole of DC lamp to terminal "G" of the receiver.
II) If you want to control an AC lamp, do as following:
1) Connect the positive pole of DC power supply to terminal "VCC" of the receiver;
2) Connect the negative pole of DC power supply to terminal "GND" of the receiver;
3) Connect the live wire of AC power supply to terminal "K" of the receiver;
4) Connect the neutral wire of AC power supply to one side of AC lamp;
5) Connect the another side of AC lamp to terminal "G" of the receiver.
Setting different control modes:
1) Setting Momentary mode: Do not connect S1 and S2.
The operation of Momentary mode with the transmitter CP-4:
Press and hold the button A on the transmitter: The relay in the receiver 1 is activated, and the connected lamp is turned on.
Release the button A: The relay in the receiver 1 is deactivated, and the connected lamp is turned off.
Press and hold the button B on the transmitter: The relay in the receiver 2 is activated, and the connected lamp is turned on.
Release the button B: The relay in the receiver 2 is deactivated, and the connected lamp is turned off.
Press and hold the button C on the transmitter: The relay in the receiver 3 is activated, and the connected lamp is turned on.
Release the button C: The relay in the receiver 3 is deactivated, and the connected lamp is turned off.
Press and hold the button D on the transmitter: The relay in the receiver 4 is activated, and the connected lamp is turned on.
Release the button D: The relay in the receiver 4 is deactivated, and the connected lamp is turned off.
2) Setting Self-locking mode: Only connect S1.
The operation of Self-locking mode with the transmitter CP-4:
Press the button A on the transmitter: The relay in the receiver 1 is activated, and the connected lamp is turned on.
Press the button A again: The relay in the receiver 1 is deactivated, and the connected lamp is turned off.
Press the button B on the transmitter: The relay in the receiver 2 is activated, and the connected lamp is turned on.
Press the button B again: The relay in the receiver 2 is deactivated, and the connected lamp is turned off.
Press the button C on the transmitter: The relay in the receiver 3 is activated, and the connected lamp is turned on.
Press the button C again: The relay in the receiver 3 is deactivated, and the connected lamp is turned off.
Press the button D on the transmitter: The relay in the receiver 4 is activated, and the connected lamp is turned on.
Press the button D again: The relay in the receiver 4 is deactivated, and the connected lamp is turned off.
3) Setting Interlocking mode: Only connect S2.
The operation of Interlocking mode with the transmitter CP-4:
Press the button A on the transmitter: The relay in the receiver 1 is activated, and the connected lamp is turned on; The relays of the other three receivers are deactivated, and the connected lamps are turned off.
Press the button B on the transmitter: The relay in the receiver 2 is activated, and the connected lamp is turned on; The relays of the other three receivers are deactivated, and the connected lamps are turned off.
Press the button C on the transmitter: The relay in the receiver 3 is activated, and the connected lamp is turned on; The relays of the other three receivers are deactivated, and the connected lamps are turned off.
Press the button D on the transmitter: The relay in the receiver 4 is activated, and the connected lamp is turned on; The relays of the other three receivers are deactivated, and the connected lamps are turned off.
How to pair the transmitter to the receiver:
1) Press and hold the button of receiver about 2 seconds until signal LED flashes; then release the button, at this time the receiver enters into status of LEARNING.
2) Press any one button on remote control. If signal LED immediately turns off, it means learning is successful.
3) The receiver can learn several remote controls with different codes.
How to delete all transmitters codes stored in the receiver:
Press and hold the button of receiver until signal LED turns off; then release the button, at this time all stored codes have been deleted successfully.
