Application:
This DC power 12V 24V wireless remote control switch kit with 15 channels dry relay output (Normally open and normally closed) radio receiver and a 15 buttons RF transmitter.
This kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long distance remote control DC and AC equipments on land, water and air, such as long range remote control lights, lamp, sirens, locks, motors, pumps, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs, etc.
Feature:
Wireless control, easy to install.
Power Supply: 2 working voltage versions, DC 12V, 24V.
Relay Output: This receiver is dry relay output, it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

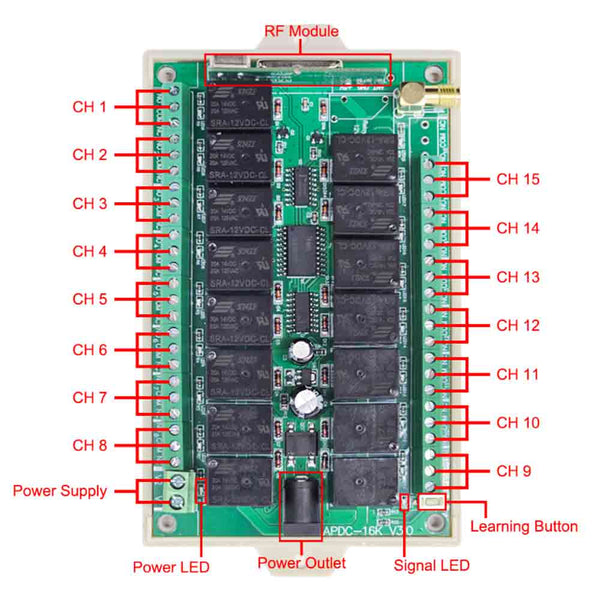

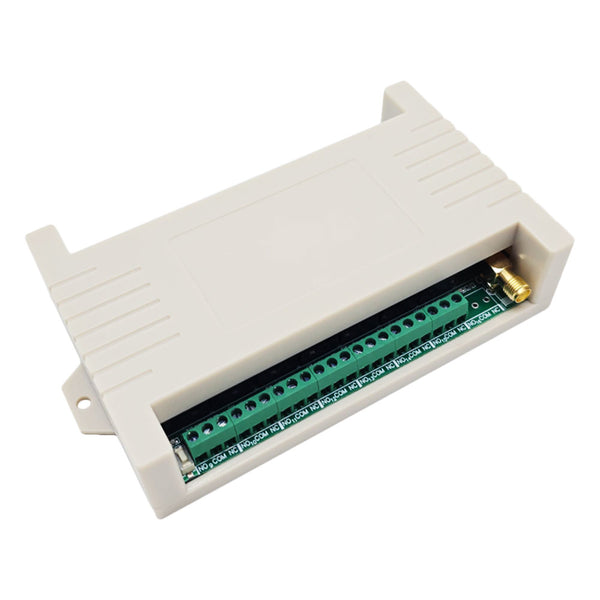

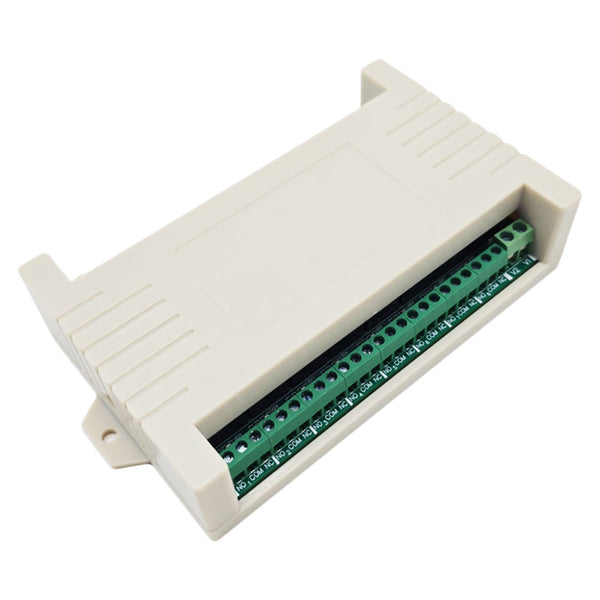

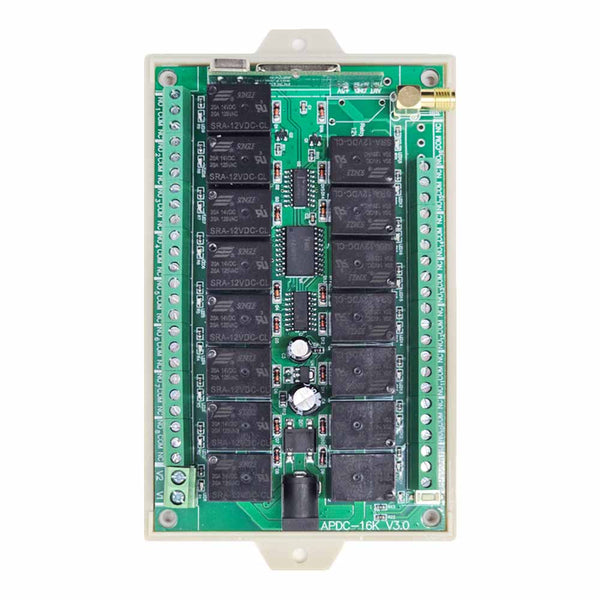

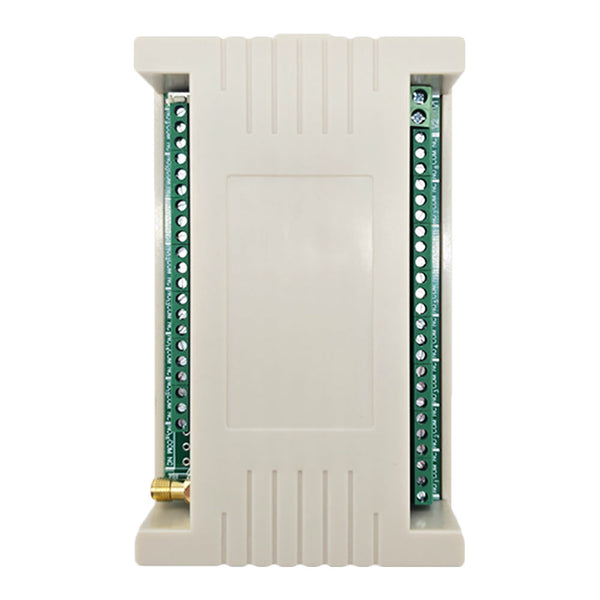

Receiver Parameters:
Model No.: S15C-DC12-ANT3 / S15C-DC24-ANT3
Power Supply (Operating Voltage): DC12V±1V (S15C-DC12-ANT3), DC24V±2V (S15C-DC24-ANT3)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-18 AWG
Working Frequency: 433.92MHz
Channel: 15 way
Control Modes: Self-locking, Momentary, Interlocking and mixed modes
Static Current: ≤6mA
Maximum Working Current: 10A / each channel
Operating Temperature: -20 ° C to +70 ° C
PCB size: 135mm x 92mm x 19mm
Case Size: 153mm x 120mm x 42mm

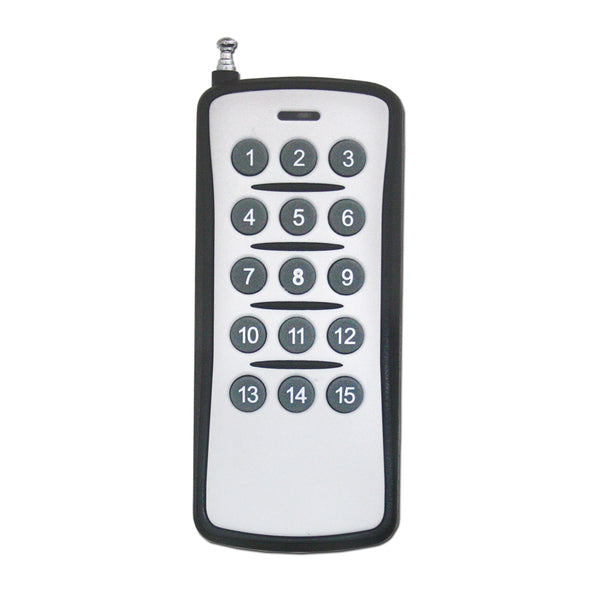

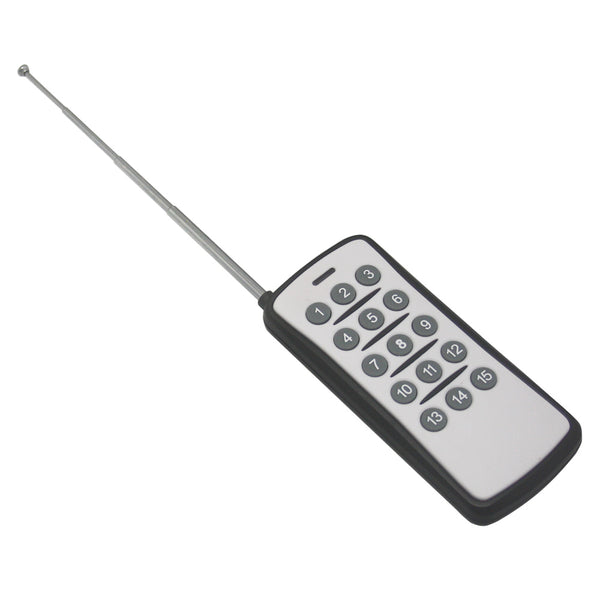

Transmitter Parameters:
Model No.: CV-15
Channel/Button: 15
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433MHz
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 118mm x 50mm x 17mm
Working Range:
With a transmitter (such as CV-15) to form a complete set, the maximum working distance can reach 500 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can replace external antenna of the receiver.

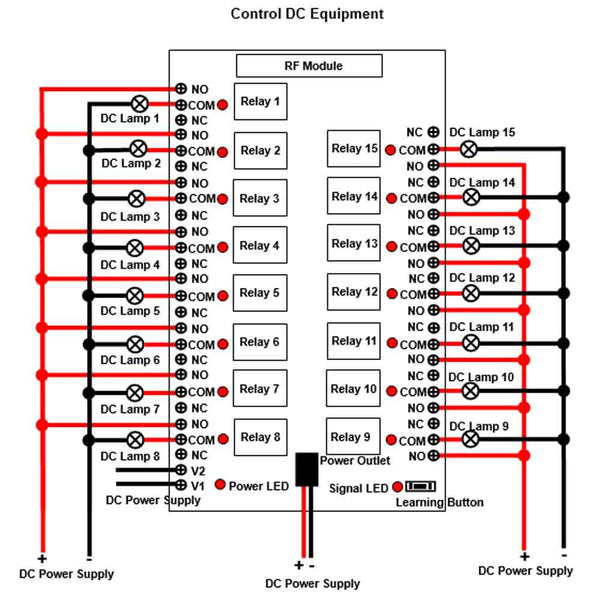

Setting different control modes:
1) Setting Momentary mode: When the receiver is in the status of LEARNING, press button 1 of the transmitter.
Control mode Momentary (working with transmitter CV-15): Press and hold -> On; Release -> Off.
Press and hold the button 1 on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Release the button 1: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press and hold the button 2 on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Release the button 2: The relay 2 is deactivated, and the connected lamp 2 is turned off.
...
Press and hold the button 15 on the transmitter: The relay 15 in the receiver is activated, and the connected lamp 15 is turned on.
Release the button 15: The relay 15 is deactivated, and the connected lamp 15 is turned off.
2) Setting Interlocking mode: When the receiver is in the status of LEARNING, press button 2 of the transmitter.
Control mode Interlocking (working with transmitter CV-15): Press -> On, Press another button -> Off.
Press the button 1 on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on; Other 14 relay are deactivated, and connected lamps are turned off.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on; Other 14 relay are deactivated, and connected lamps are turned off.
...
Press the button 15 on the transmitter: The relay 15 in the receiver is activated, and the connected lamp 15 is turned on; Other 14 relay are deactivated, and connected lamps are turned off.
3) Setting Self-locking mode: When the receiver is in the status of LEARNING, press button 3 of the transmitter.
Control mode Self-locking (working with transmitter CV-15): Press -> On; Press again -> Off.
Press the button 1 on the transmitter: The relay 1 in the receiver is activated, and the connected lamp 1 is turned on.
Press the button 1 again: The relay 1 is deactivated, and the connected lamp 1 is turned off.
Press the button 2 on the transmitter: The relay 2 in the receiver is activated, and the connected lamp 2 is turned on.
Press the button 2 again: The relay 2 is deactivated, and the connected lamp 2 is turned off.
...
Press the button 15 on the transmitter: The relay 15 in the receiver is activated, and the connected lamp 15 is turned on.
Press the button 15 again: The relay 15 is deactivated, and the connected lamp 15 is turned off.
4) Setting Momentary (Channel 1~8) + Interlocking (Channel 9~15) mode: When the receiver is in the learning status, press button 4 of the transmitter.
5) Setting Self-locking (Channel 1~8)) + Momentary (Channel 9~15) mode: When the receiver is in the learning status, press button 5 of the transmitter.
6) Setting Interlocking (Channel 1~8) + Self-locking (Channel 9~15) mode: When the receiver is in the learning status, press button 6 of the transmitter.
7) Setting Momentary (Channel 1~13) + Interlocking (Channel 14~15) mode: When the receiver is in the learning status, press button 7 of the transmitter.
8) Setting Self-locking (Channel 1~13) + Momentary (Channel 14~15) mode: When the receiver is in the learning status, press button 8 of the transmitter.
9) Setting Self-locking (Channel 1~5) + Momentary (Channel 6~10) + Interlocking (Channel 11~15) mode: When the receiver is in the learning status, press button 9 of the transmitter.
10) Setting Momentary (Channel 1~5) + Interlocking (Channel 6~10) + Momentary (Channel 11~15) mode: When the receiver is in the learning status, press button 10 of the transmitter.
11) Setting Self-locking (Channel 1~2) + Momentary (Channel 3~10) + Interlocking (Channel 11~15) mode: When the receiver is in the learning status, press button 11 of the transmitter.
12) Setting Momentary (Channel 1~2) + Self-locking (Channel 3~10) + Interlocking (Channel 11~15) mode: When the receiver is in the learning status, press button 12 of the transmitter.
13) Setting Latched (Channel 1~2) + Momentary (Channel 3~10) + Self-locking (Channel 11~15) mode: When the receiver is in the learning status, press button 13 of the transmitter.
14) Setting Self-locking (Channel 1~2) + Interlocking (Channel 3~9) + Momentary (Channel 10~15) mode: When the receiver is in the learning status, press button 14 of the transmitter.
15) Setting Self-locking (Channel 1~13) + All On / Off (Channel 14/15) mode: When the receiver is in the learning status, press button 15 of the transmitter.
Press button 14: Turn on all 15 relays
Press button 15: Turn off all 15 relays
Package Include:
1 x Receiver: S15C-DC-ANT3
1 x Transmitter: CV-15
1 x User manual
