Wireless Remote Control Switch Kit 4 Way DC 8~80V Input Output (Model: 0020216)

Regular price $78.00

Shipping calculated at checkout.

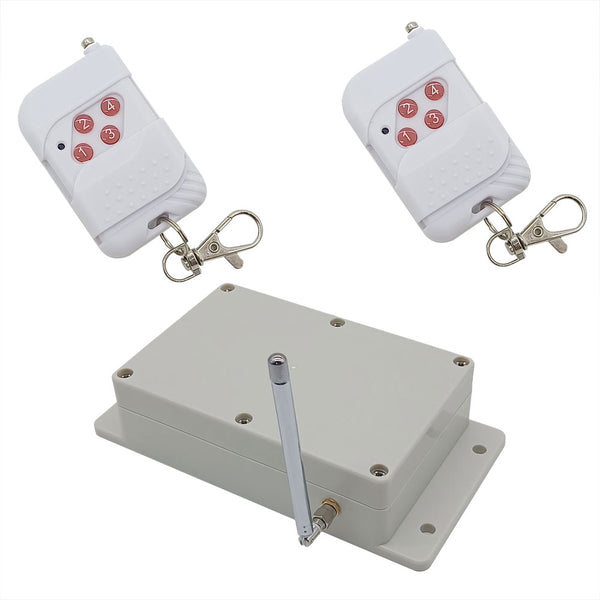

Package Include:
1 x Receiver: S4X-DC-ANT3
2 x Transmitter: C-4
1 x User manual

Application:
This 4 channels DC power 8~80V input output 10A wireless remote control switch kit with radio transmitter and RF receiver.
The kit may be used in all types of industry automation, agriculture, home, factory, house, farm, vehicle, ship, offshore operations, etc. It can long distance remote control DC electrical equipments. Such as long range remote control lamp, light, solar light, fan, motor, pump, solenoid valve, door lock, gates, etc.

Feature:
Wireless control, easy to install.

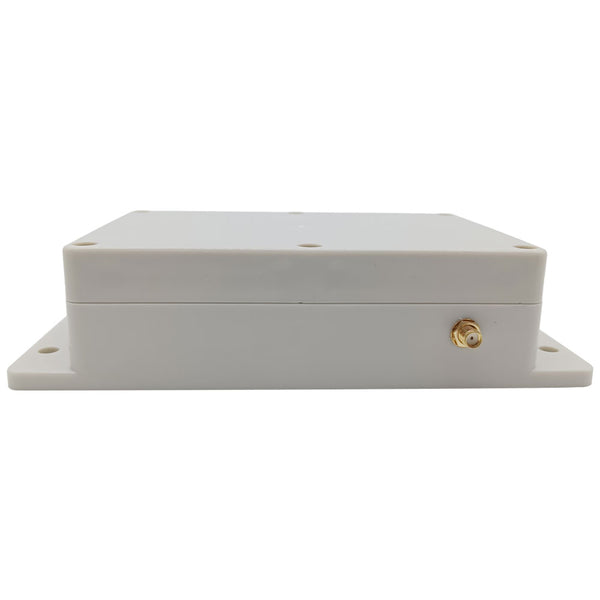

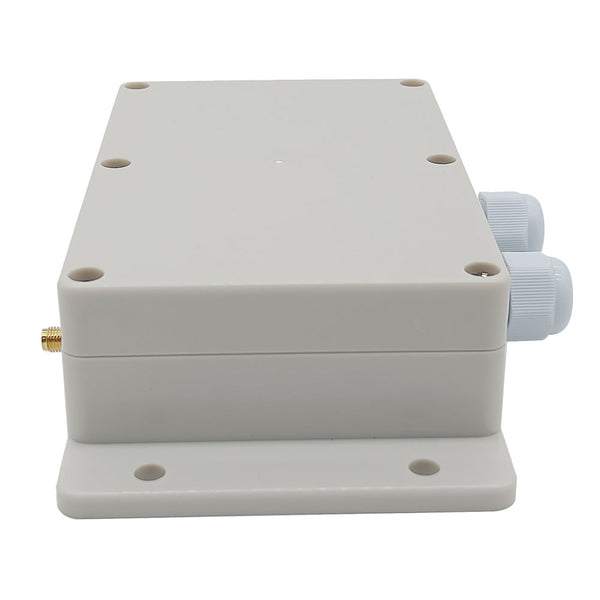

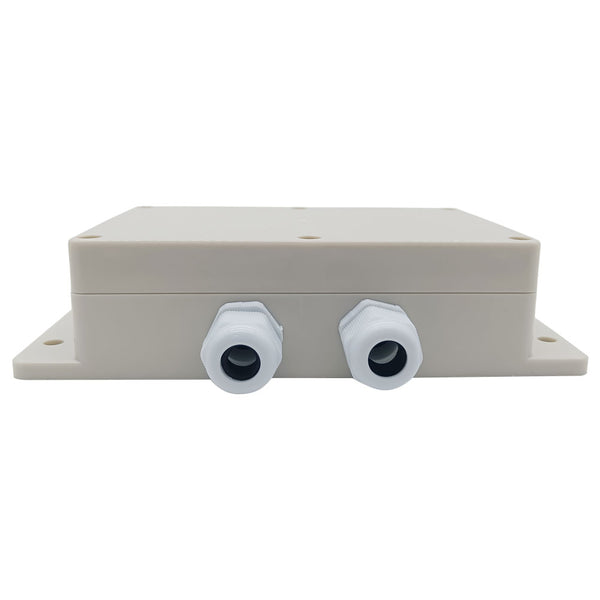

Waterproof: The receiver has waterproof case and waterproof connector; it can be installed outdoors.
DC 8~80V operating voltage range.
DC Power Output: It can control DC equipment with a voltage in the range of 8~80 VDC.

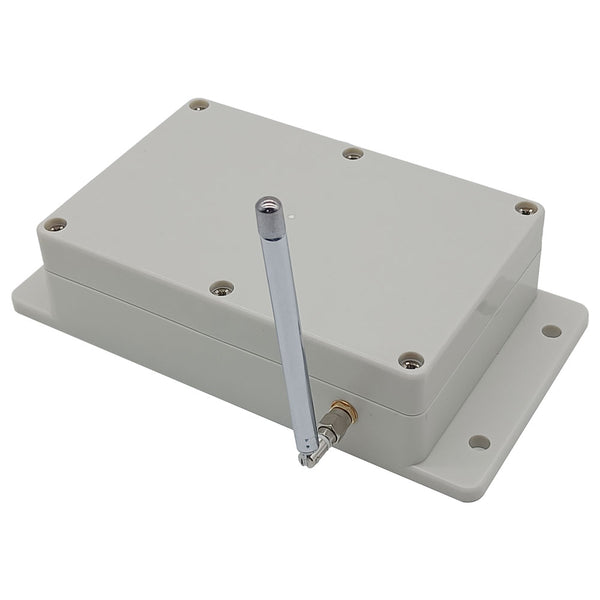

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

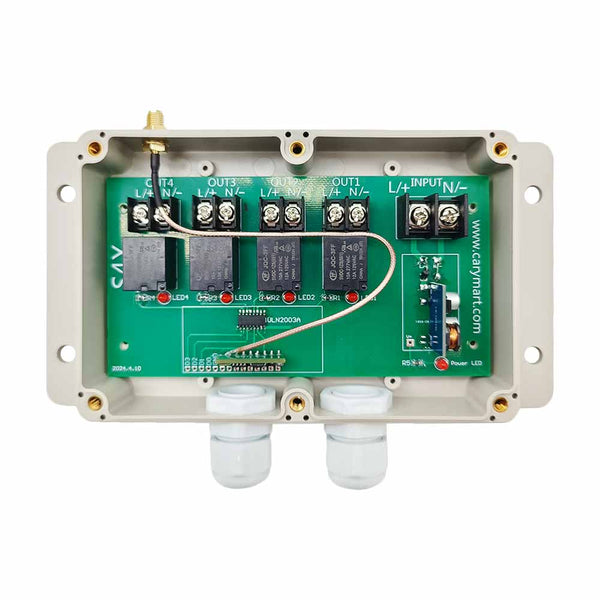

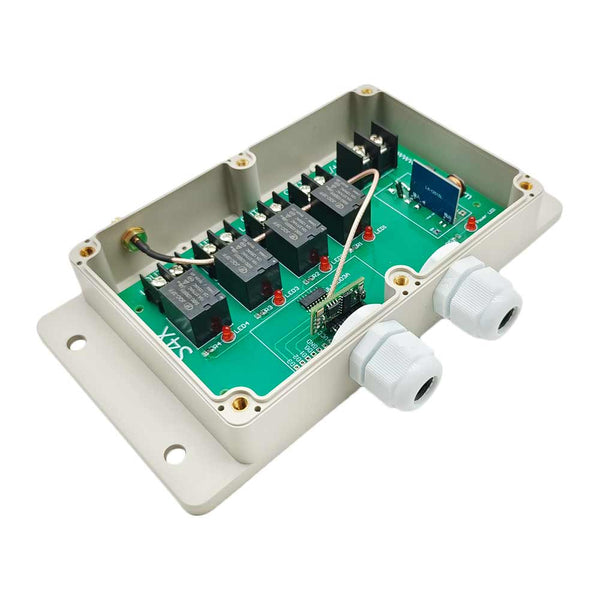

Receiver Parameters:
Model: S4X-DC-ANT3
Operating Voltage: 8~80 VDC
Output Type: 8~80 VDC same as input voltage
Channel: 4 CH
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Quiescent Current: ≤6mA
Maximum Load Current of Relay: 10A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
Working Frequency: 433.92 MHz
Operating Temperature: -20 °C ~ +70 °C
PCB size: 140 x 73 x 18 mm (5.5 x 2.9 x 0.7 inches)
Case size: 192 x 100 x 45 mm (7.6 x 4.0 x 1.8 inches)

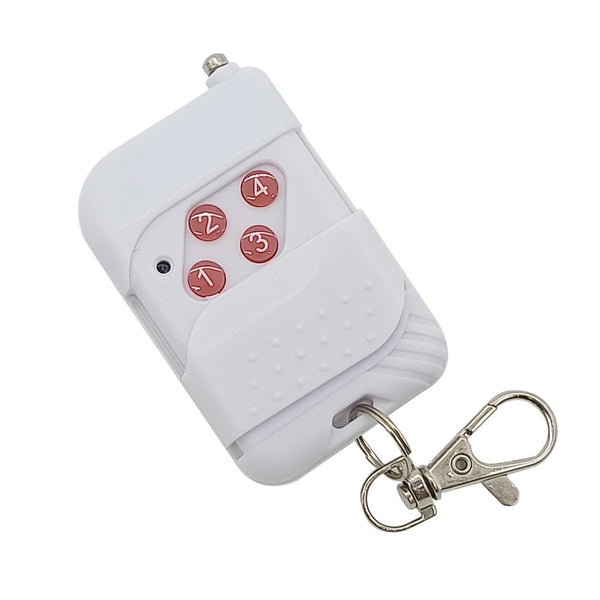

Transmitter Parameters:
Model No.: 0021003 (C-4)

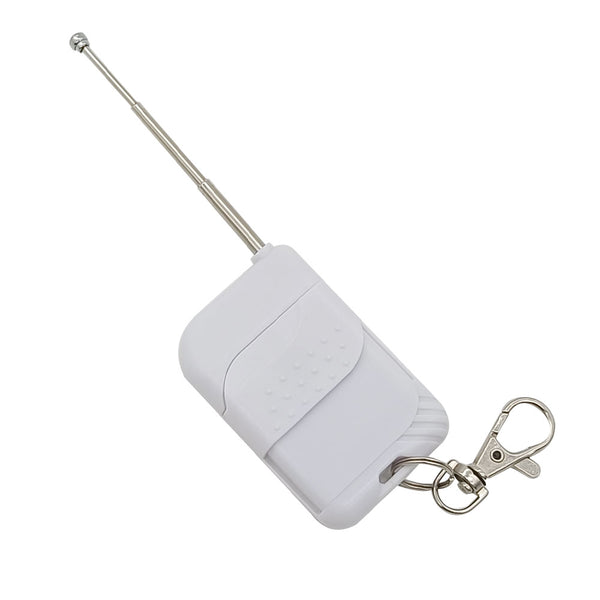

With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 4
Button Symbol: 1, 2, 3, 4
Operating Voltage: 12V (1 x 23A -12V battery)
Operating Current: 6mA
Operating Frequency: 433.92 MHz
Transmitting Distance: 100 meters / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm

Matching Transmitters:
The receiver can work with different transmitters, such as model C-4 (100 meters), CP-4 (500 meters), CD -4 (1000 meters, waterproof, industrial), or CB -4 (1000 meters).

Working Range:
With a transmitter (such as C-4) to form a complete set, the maximum working distance can reach 100 meters in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-4 transmitter.

Usage:
The receiver can be used to control DC equipment with a voltage in the range of 8~80 VDC.

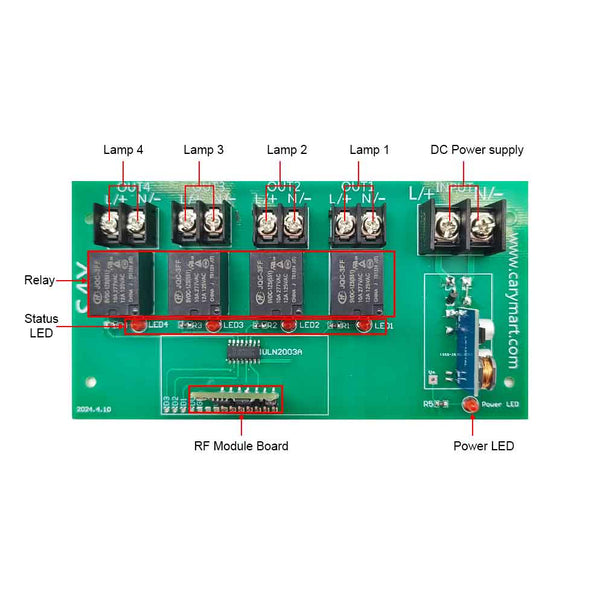

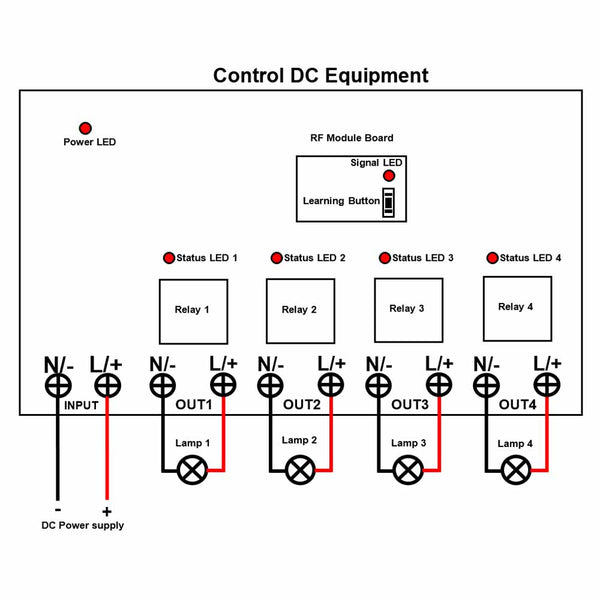

Wiring:
1) Connect the positive pole of DC power supply to input terminal "L/+" of the wireless switch;
2) Connect the negative pole of DC power supply to input terminal "N/-" of the wireless switch;
3) Connect the positive pole of DC device to output terminal "L/+" of the wireless switch;
4) Connect the negative pole of DC device to output terminal "N/-" of the wireless switch.

Setting different control modes:
1) Setting Momentary mode (work with transmitter C-4): Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Press and hold button 1 on the transmitter: Terminal "OUT 1"of the receiver outputs DC power, and the connected light is turned on.
Release button 1: Terminal "OUT 1"of the receiver stops outputting, and the connected light is turned off.
Press and hold button 2 on the transmitter: Terminal "OUT 2"of the receiver outputs DC power, and the connected light is turned on.
Release button 2: Terminal "OUT 2"of the receiver stops outputting, and the connected light is turned off.
Press and hold button 3 on the transmitter: Terminal "OUT 3"of the receiver outputs DC power, and the connected light is turned on.
Release button 3: Terminal "OUT 3"of the receiver stops outputting, and the connected light is turned off.
Press and hold button 4 on the transmitter: Terminal "OUT 4"of the receiver outputs DC power, and the connected light is turned on.
Release button 4: Terminal "OUT 4"of the receiver stops outputting, and the connected light is turned off.

2) Setting Self-locking mode (work with transmitter C-4): Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Press button 1 on the transmitter: Terminal "OUT 1"of the receiver outputs DC power, and the connected light is turned on.
Press button 1 again: Terminal "OUT 1"of the receiver stops outputting, and the connected light is turned off.
Press button 2 on the transmitter: Terminal "OUT 2"of the receiver outputs DC power, and the connected light is turned on.
Press button 2 again: Terminal "OUT 2"of the receiver stops outputting, and the connected light is turned off.
Press button 3 on the transmitter: Terminal "OUT 3"of the receiver outputs DC power, and the connected light is turned on.
Press button 3 again: Terminal "OUT 3"of the receiver stops outputting, and the connected light is turned off.
Press button 4 on the transmitter: Terminal "OUT 4"of the receiver outputs DC power, and the connected light is turned on.
Press button 4 again: Terminal "OUT 4"of the receiver stops outputting, and the connected light is turned off.

3) Setting Interlocking mode (work with transmitter C-4): Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Press button 1 on the transmitter: Terminal "OUT 1"of the receiver outputs DC power, and the connected light is turned on; Other 3 terminals stop outputting, and the connected light is turned off.
Press button 2 on the transmitter: Terminal "OUT 2"of the receiver outputs DC power, and the connected light is turned on; Other 3 terminals stop outputting, and the connected light is turned off.
Press button 3 on the transmitter: Terminal "OUT 3"of the receiver outputs DC power, and the connected light is turned on; Other 3 terminals stop outputting, and the connected light is turned off.
Press button 4 on the transmitter: Terminal "OUT 4"of the receiver outputs DC power, and the connected light is turned on; Other 3 terminals stop outputting, and the connected light is turned off.

4) Setting Momentary (Channel 1~2) + Self-locking (Channel 3~4) mode: Press the learning button in the receiver 5 times, signal LED continuously flashes 5 times and then goes off.
